Pony Express AC Tugger 25K+ Lithium
SKU AC Tugger 25K+ Lithium
Overview

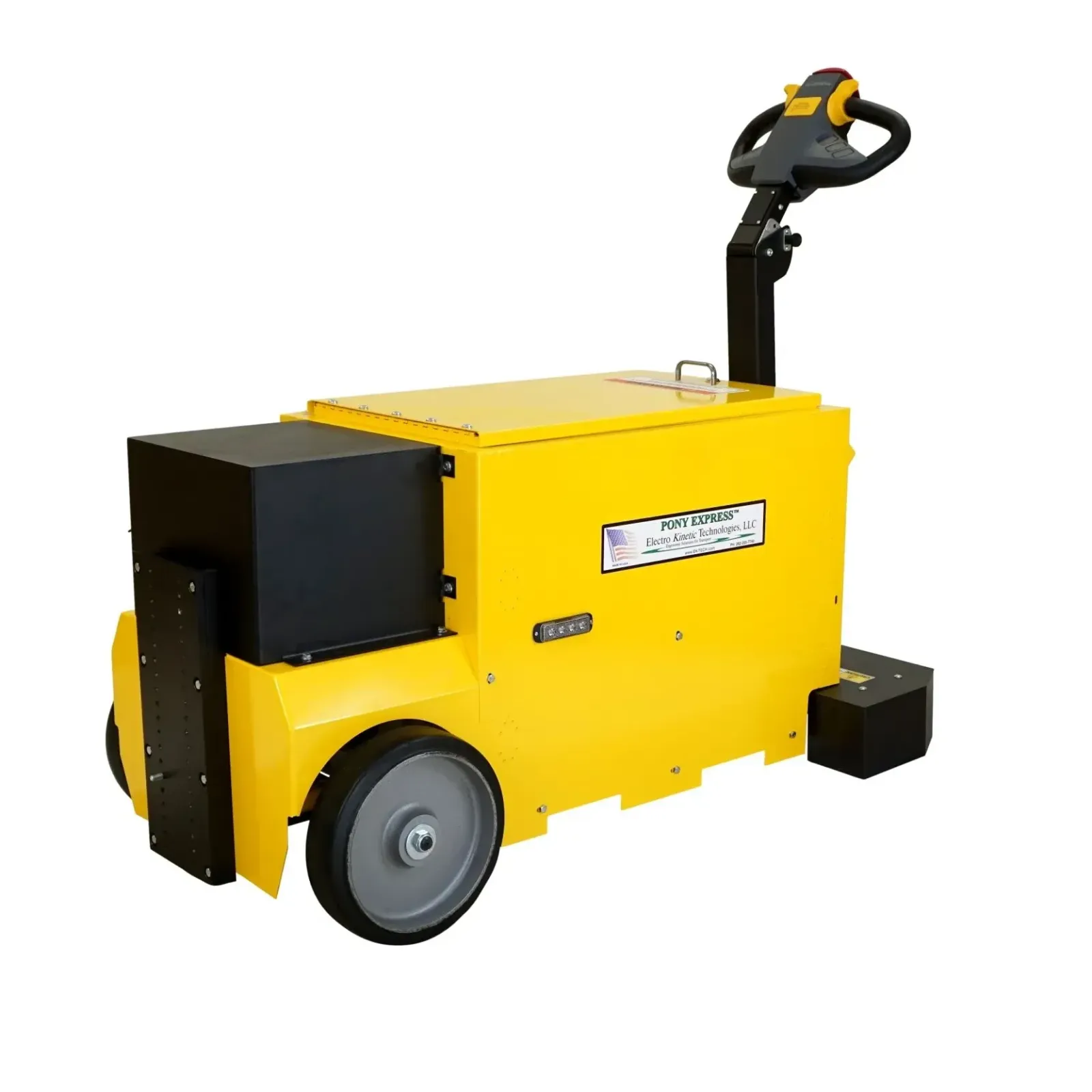

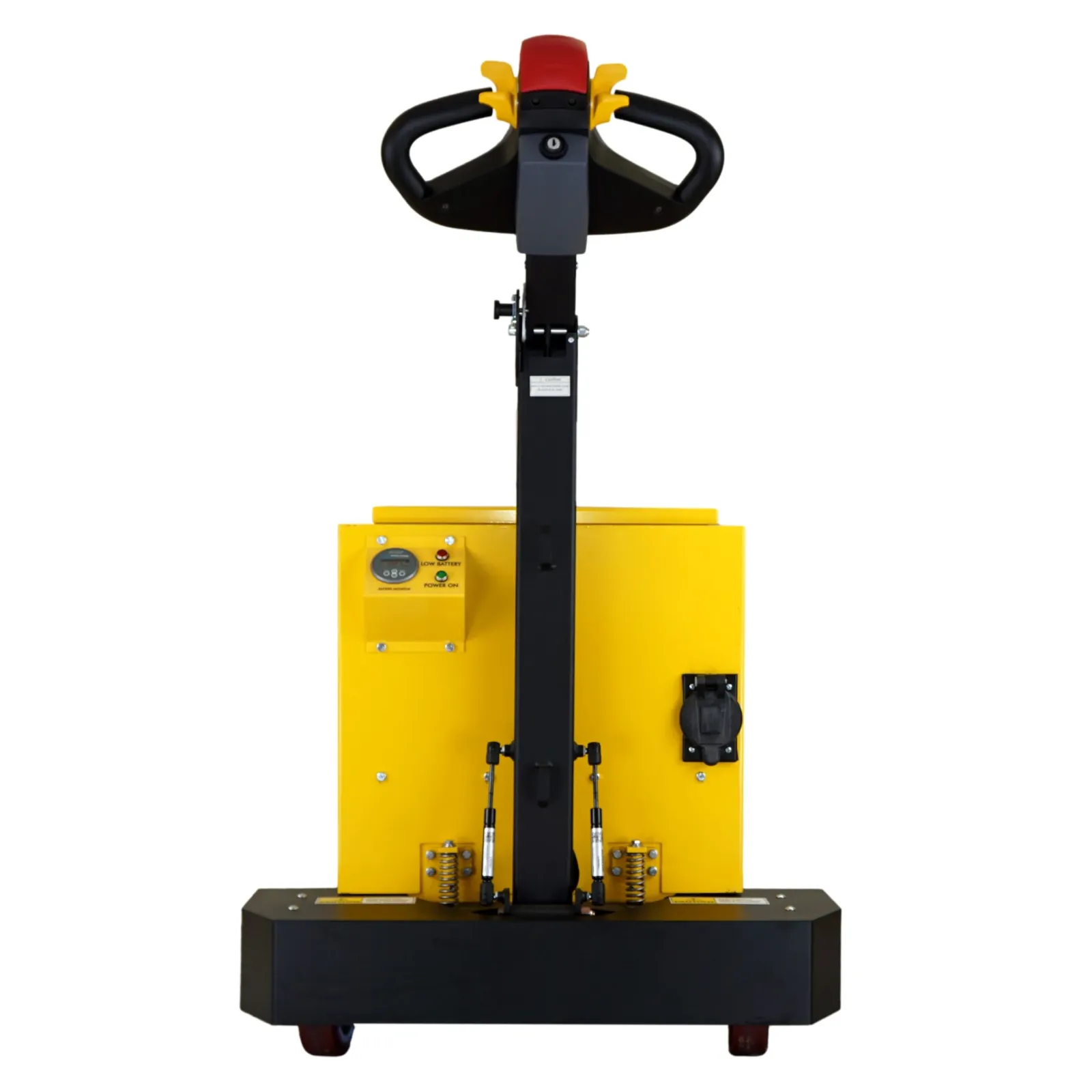

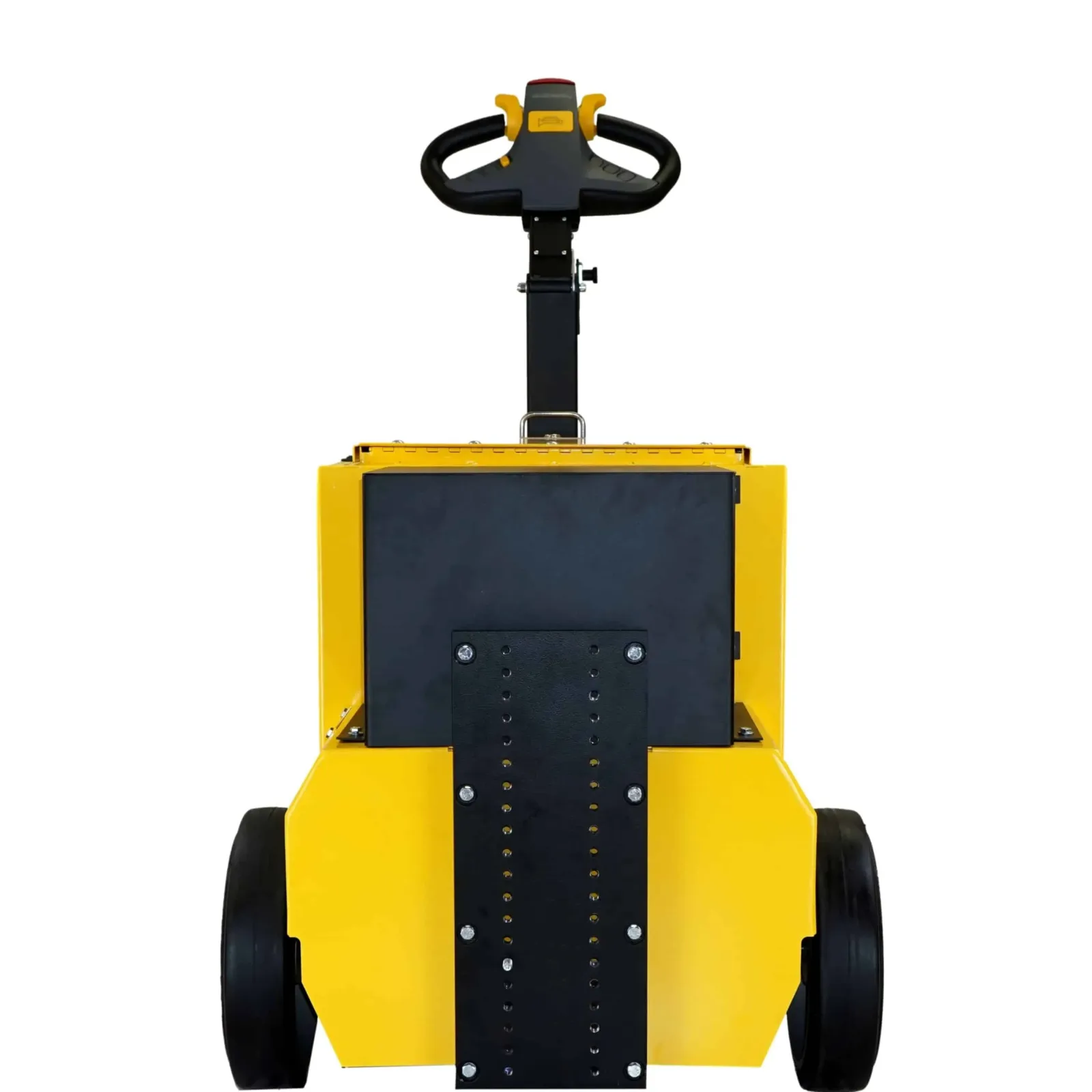

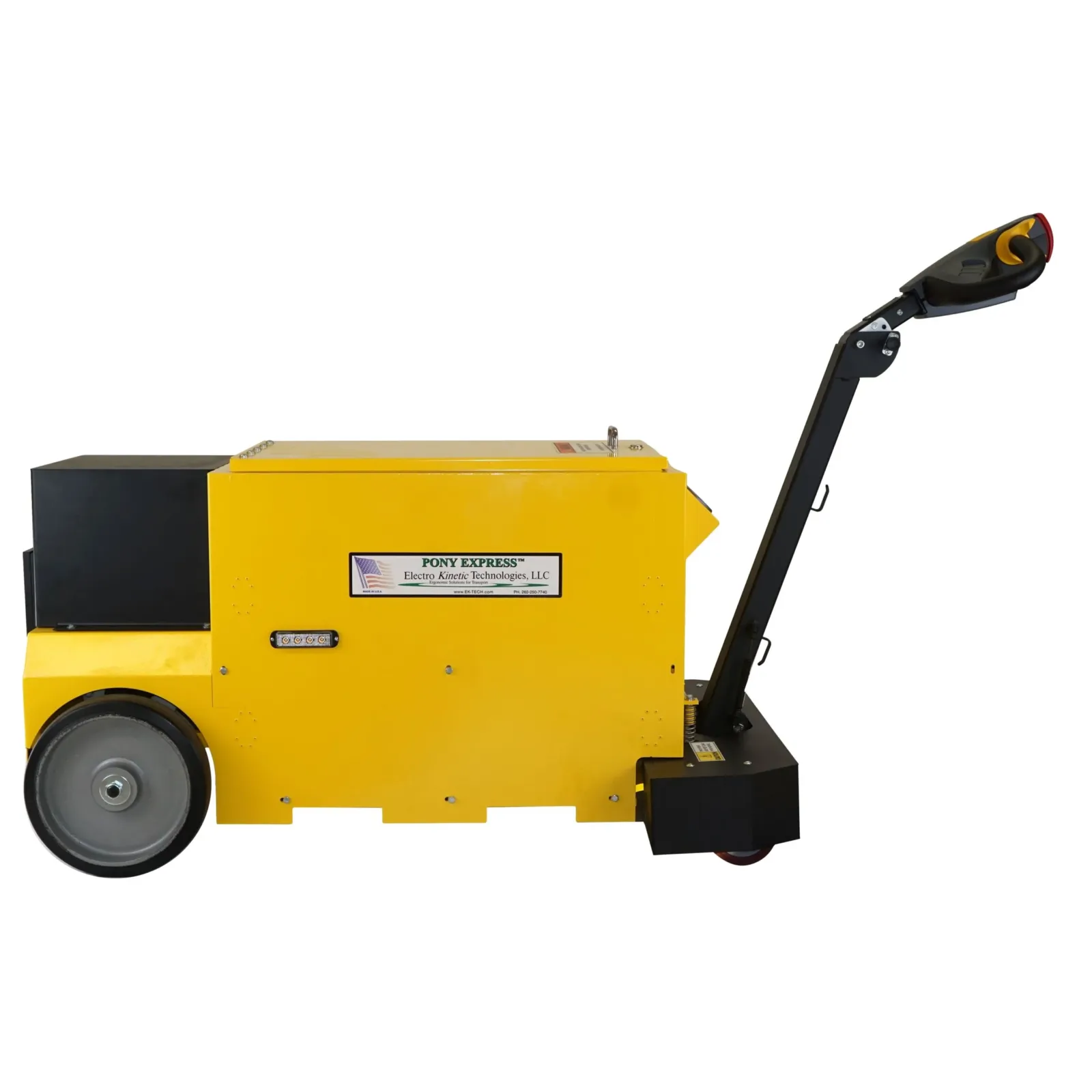

The Pony Express AC Tugger 25K+ Lithium is the highest capacity tugger in the Electro Kinetic Technologies line, built to move heavy carts and loads up to 25,000 lb on casters and up to 100,000 lb on rails. This lithium configuration replaces the standard AGM pack with a 48 VDC, 120 Ah lithium iron phosphate battery for faster charging, longer service life and a quick swap connector for multi-shift operations. The welded steel frame and powder coat finish are built in the USA for demanding warehouse, manufacturing and distribution floors.
Power comes from a 48V AC, 1.7 kW transaxle with AC Vector Power technology, which delivers strong torque across the full speed range rather than tapering off like traditional DC drives. The operator controls speed from 0 to 1.5 mph in low and 0 to 3.0 mph in high, with regenerative braking and an electromagnetic automatic holding brake for safe handling on inclines. A single charge supports up to 8 hours of operation and the external certified charger brings the pack back to full in about 90 minutes.
The lithium battery is the key upgrade over the AGM model. It charges far faster, lasts many times longer than lead based chemistries and supports a fast swap so a charged pack can be dropped in without downtime. A built in monitoring system with Bluetooth pairs to a smartphone app so operators and managers can track state of charge, consumed amp-hours and voltage, with visual and audible alerts when it is time to recharge.
See the smaller models in the Pony Express lithium tuggers range.
Other specifications
| Weight Capacity Rails | 100,000 lbs. |
|---|---|
| Drive System | 48V AC, 1.7 kW transaxle powered by AC Vector Power technology |
| Chassis | Welded steel with powder coated finish |
| Made in USA | Yes, built in the USA |
Specifications
| Towing capacity | 25,000 lb |
|---|---|
| Top speed | Ask us |
| Run time per charge | Ask us |
| Battery | 48 VDC, 120 Ah lithium iron phosphate (LiFePO4) swappable pack with fast swap connector |
| Overall length | 52 in |
| Overall width | 30 in |
Documents
Questions
How much can the AC Tugger 25K+ Lithium pull?
It moves loads up to 25,000 lb on carts riding on casters and up to 100,000 lb when the load runs on rails. That makes it the highest capacity tugger in the Pony Express line.
What is the difference between the lithium and AGM versions?
The standard AC Tugger 25K+ ships with a 48 VDC, 100 Ah AGM battery. This lithium model uses a 48 VDC, 120 Ah lithium iron phosphate pack that charges faster, lasts many times longer and supports a fast swap connector for multi-shift operations.
How long does the battery last and how fast does it charge?
A full charge supports up to 8 hours of operation. The external certified charger brings the lithium pack back to full in approximately 90 minutes.
Can I monitor the battery remotely?
Yes. The unit includes Bluetooth connectivity and a smartphone app that displays state of charge, consumed amp-hours and voltage, with visual and audible alerts when it is time to recharge.
Is it made in the USA and what warranty applies?
Yes, it is built in the USA with a welded steel frame. It carries a 2 year warranty on the frame and motor, and the lithium battery is covered by a 2 year warranty.
