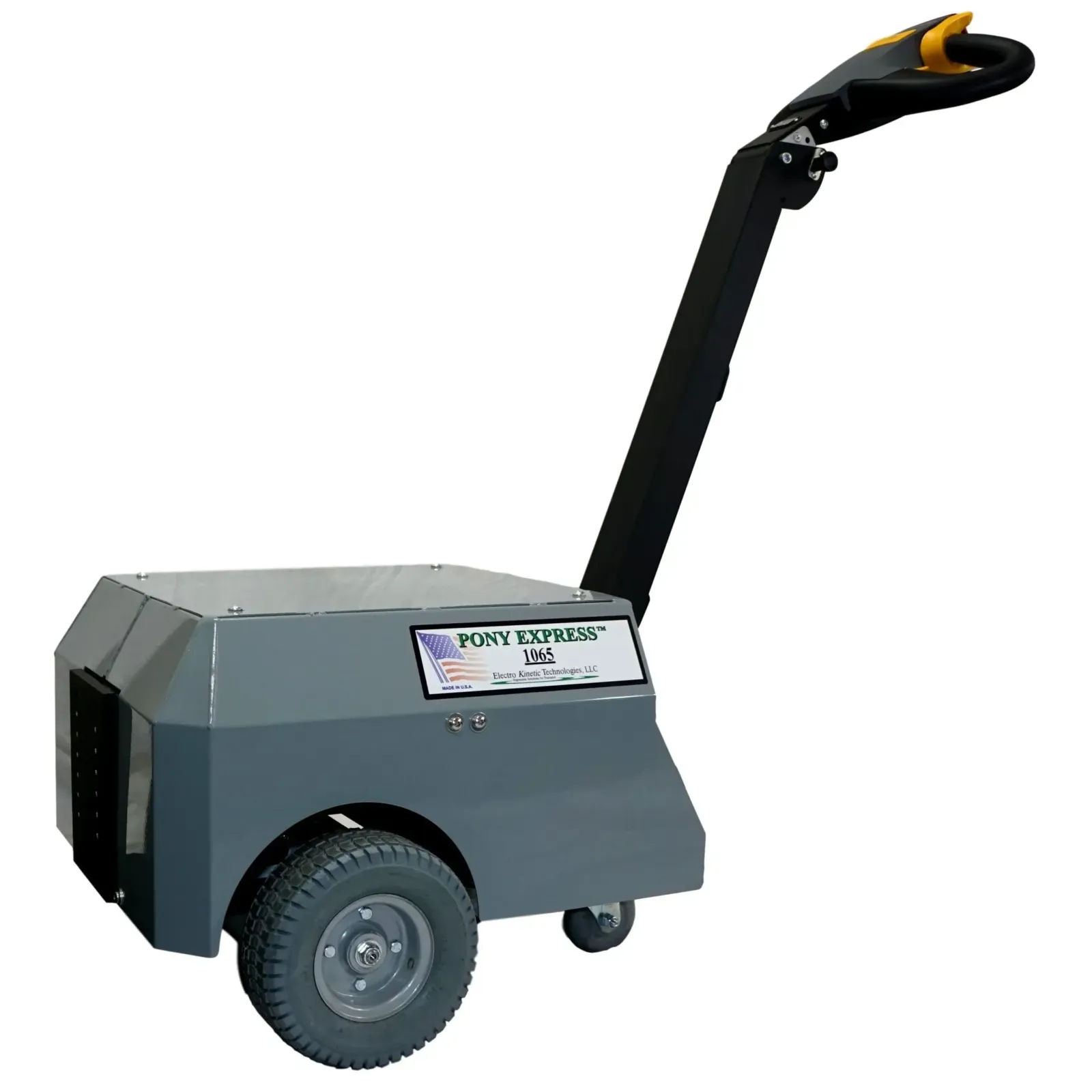

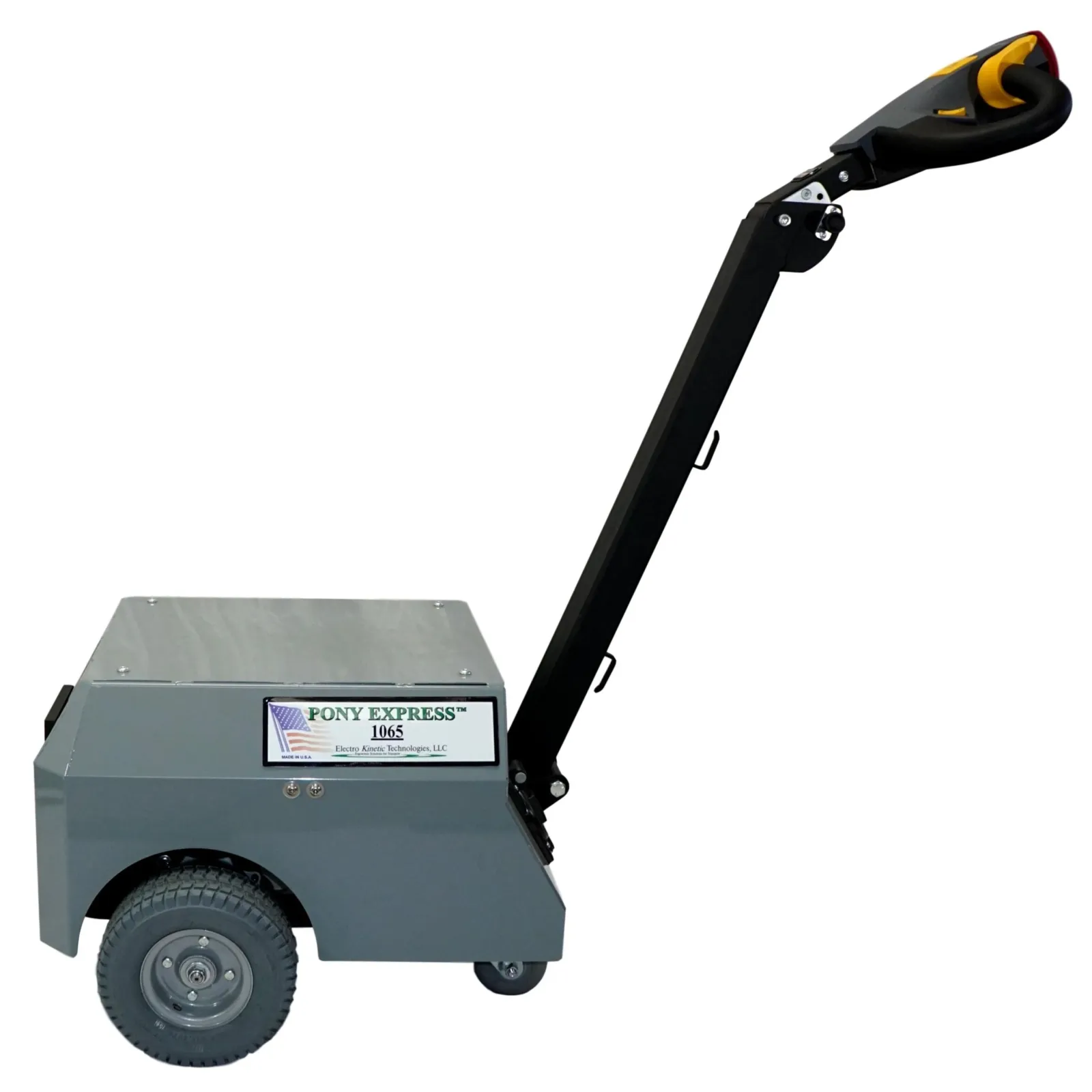

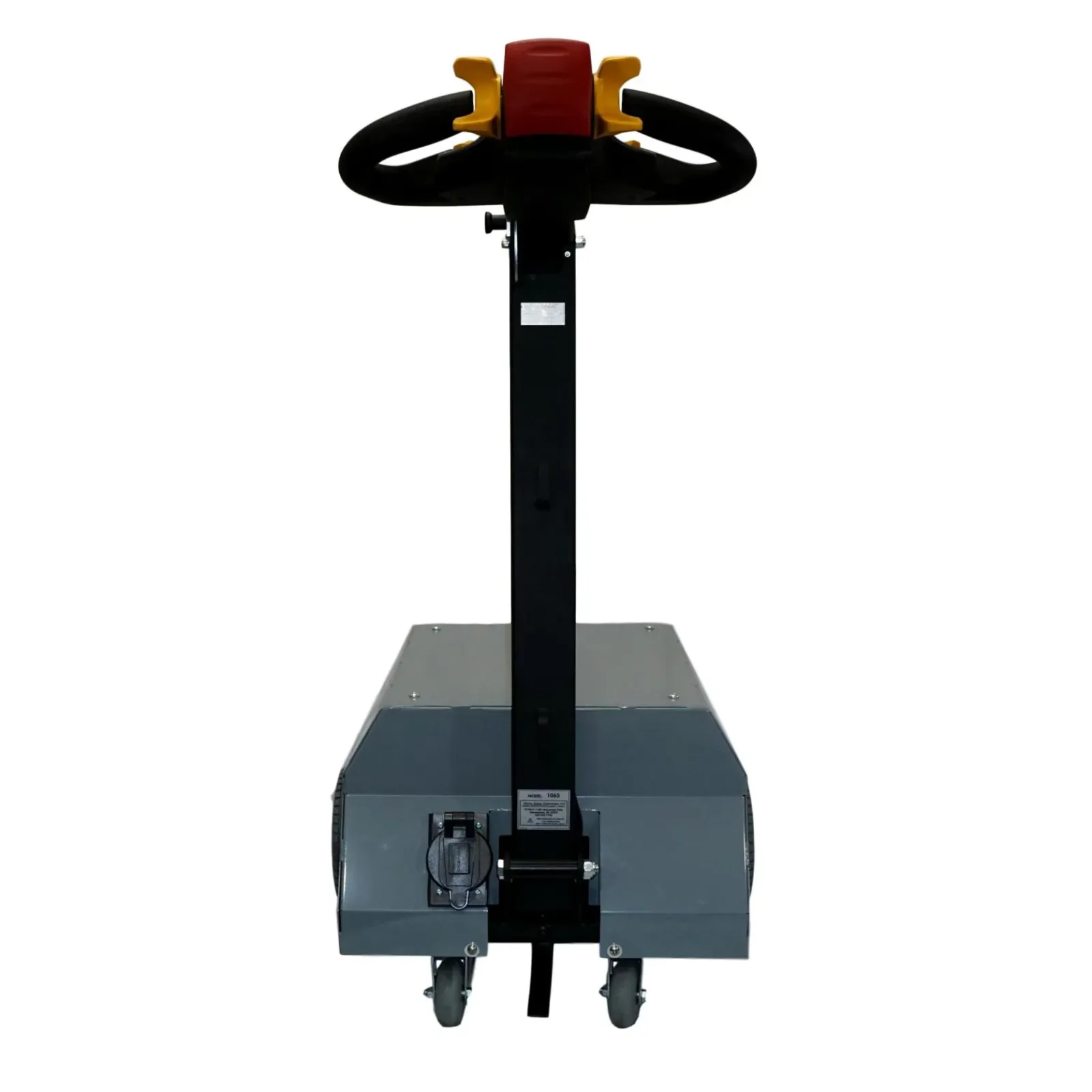

Pony Express 1065 Electric Tugger
SKU 1065
Price by quote
In stock
- Holds a de rated load on a 30 degree grade
- Same 25 by 24 inch body as the 2,000 lb 1062
- Recharges in about 4 hours on the onboard charger
Overview
Key Features
- Only 50 lb more shipping weight than the 2,000 lb 1062 for two and a half times the pull
- 70 Ah AGM pack, double the 1062 standard battery, on the same 25 by 24 inch body
- Recharges in about 4 hours from the onboard UL listed charger on any 120 or 240 VAC outlet
- Automatic holding brake parks the load on an incline, with a de rated pull on a 30 degree grade
- IP54 sealed controller shrugs off dust and splashes on a busy floor
- Belly button emergency stop, dead man thumb wheel and a 115 dB industrial horn option
- Foam filled puncture proof tires never go flat and leave no marks on finished floors
- Wide hitch portfolio tows carts of different shapes, rated for hospitals, resorts, laboratories and manufacturing floors
Power and Performance
The Pony Express 1065 delivers dependable pulling power with its 24V high-torque DC motor, making it a versatile solution for hospitals, resorts, warehouses, laboratories, and light to heavy manufacturing facilities.
Safety and Control
With variable speed forward and reverse control, regenerative braking, holding brake for inclines, and built-in emergency features, the 1065 ensures maximum operator safety and ease of use.
Built for Durability
Engineered in the USA, the heavy-duty powder-coated steel frame combined with foam-filled, never-flat tires guarantees performance even in demanding environments.
Versatile Towing
The 1065 supports a wide range of hitch options, allowing it to move carts of different shapes and sizes efficiently across industries.
Warranty
The Pony Express 1065 Electric Tugger comes with a 2-year warranty on the frame and motor, giving users long-term reliability and peace of mind.
Other specifications
| Incline Rating | 30° with de-rated load capacity |
|---|---|
| Recharging Time | Approximately 4 hours |
| Parking Brake | Electromagnetic |
| Chassis | Welded steel with powder coated finish |
| Drive Wheel | Puncture proof, non-marking |
| Operating Temperature | 0° C to +40° C |
| Charging Temperature | -23° C to +60° C |
| Noise Level | < 65 dBA, 115 dB horn for industrial applications |
| Ingress Protection | IP 42, Controller IP 54 |
| Other Safety Procedures | Emergency belly button stop switch, Power on, Hi/Low speed switches |
| Controller | Dead man operation. Unit comes to a controlled stop when operator removes hands from controls |
| Shipping Dimensions (L x W x H) | 48" x 40" x 60" |
| Shipping Weight | 400 lbs |
Specifications
| Towing capacity | 5,000 lb |
|---|---|
| Top speed | 3 mph |
| Run time per charge | 8 hours |
| Battery | 70 Ah, AGM |
| Charger | Internal, 120/240 VAC, 47-63 Hz, UL, cUL, CE |
| Overall length | 25 in |
| Overall width | 24 in |
Documents
- Pony Express 1065 manual (PDF) Manual
- Pony Express 1065 brochure (PDF) Brochure
Questions
How fast does the Pony Express 1065 Electric Powered Tugger go?
At full speed, you can reach up to 3 mph. Its speed is set to match normal walking speeds, ensuring safety and easy maneuvering inside. It's meant to move the items more safely and more conveniently for users.
How long do the Pony Express 1065 Electric Powered Tugger batteries last per charge?
The Pony Express 1065 is designed with efficient battery usage in mind, and it offers a substantial run time. On a full charge, the battery can last for up to 8 hours of operation time. This ensures a reliable, uninterrupted working experience for the users.
How much weight can the Pony Express 1065 Electric Powered Tugger carry?
The weight capacity of the Pony Express 1065 is 5,000 lb.
