Pony Express 1050-EL Motorized Scissor Lift Cart
- Availability
- In stock
- Brand
- EK Tech
- Model
- 1050-EL
- Load capacity
- 1,000 lb
- Deck
- 43.5 x 23 in
- Top speed
- 3 mph
Price by written quote
- Freight to your ZIP on the quote
Ask for Raphael Perlmann.
Reviews of our parent store Heavy Duty Mobility
- Fast answers We call the factory for you
- The right machine We research every option
- Send your drawings We check that it all fits
- 2 year warranty On the frame and drive, 1 year on other parts
Highlights
- Carries and lifts up to 1,000 lb
- Raises the platform from 18.5 to 64 inches in 17 seconds
- Up to 10 miles of operation per charge
- Stops and holds when the operator lets go
Pick from nine hitches, or send your drawing for a custom hitch, top or deck.
Where it works
-
Plants
Parts and dies raised to press and bench height.
-
Warehouses
Cartons lifted to conveyor and shelf height.
-
Assembly
Work held at the right height at each station.
-
Packaging lines
Product raised to the packing and conveyor level.
Specifications
Performance
| Load capacity | 1,000 lb |
|---|---|
| Top speed | 3 mph |
| Vertical travel | 45.5 in |
| Lift speed | 17 seconds |
| Maximum incline rating | 6° |
Battery and charging
| Run time per charge | Ask us |
|---|---|
| Battery | AGM, deep cycle |
| Range per charge | Up to 10 miles of operation on a single charge |
| Battery charger | UL/cUL, CE listed on board smart charging system, 120/240 VAC, 50/60 Hz |
Size and weight
| Platform length | 43.5 in |
|---|---|
| Platform width | 23 in |
| Lowered height | 18.5 in |
| Raised height | 64 in |
| Shipping dimensions (L x W x H) | 66 in x 31 in x 50 in |
| Shipping weight | 600 lb |
Build and safety
| Brakes | Regenerative dynamic braking, automatic holding brake |
|---|---|
| Frame | Welded frame construction with powder coat paint |
| Tires | Non-marking |
Options and parts
Hitches, options and parts we sell for this machine. Add them to your written quote or call us.
Options 3
-

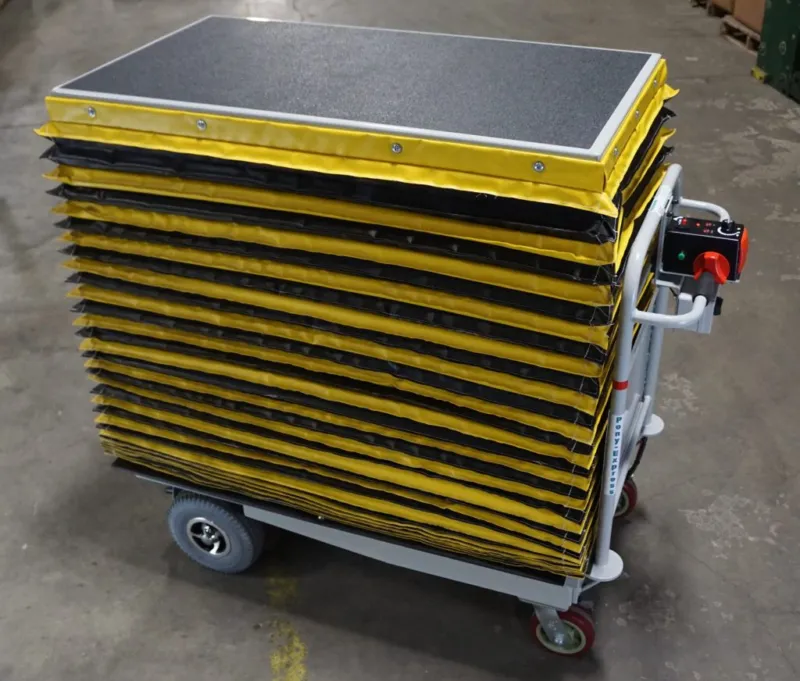

Pony Express Accordion Safety Skirt 1050-A03 for the 1050-EL
Part no. 1050-A03
Call for price and stock
-

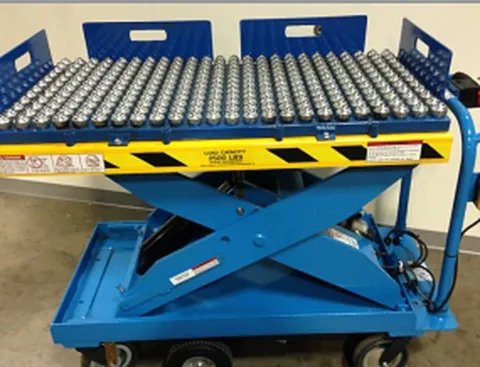

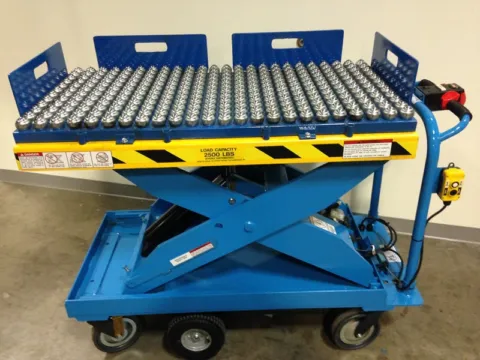

Pony Express Ball Transfer Top 0244-500 for the 1050-EL
Part no. 0244-500
Call for price and stock
-

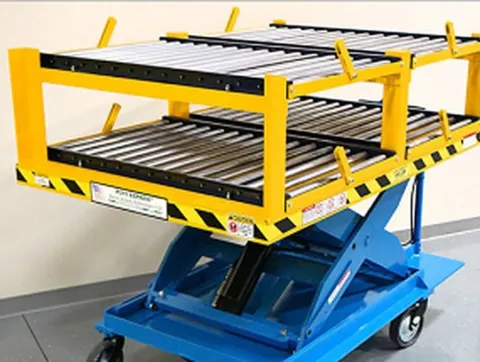

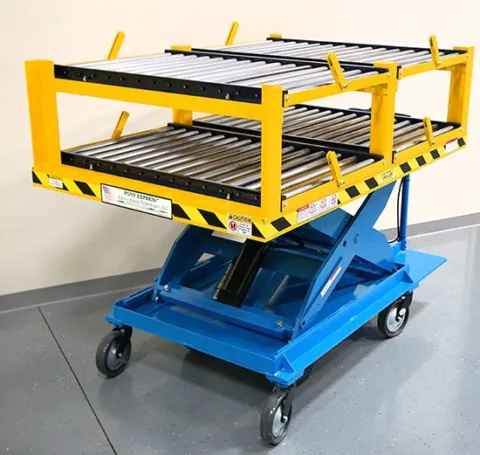

Pony Express Gravity Roller Conveyor Top 0244-505 for the 1050-EL
Part no. 0244-505
Call for price and stock
Warranty
For the Pony Express 1050-EL Motorized Scissor Lift Cart
- 2 years Frame and drive
- 1 year Other parts
Returns and changes
- Return within 30 days with a return authorization number
- Cancel free before it ships
- Return freight on the original pallet is yours, with a 20% restocking fee after it ships
- Any damage to a returned machine is charged to you
- Custom builds are final
Questions about coverage? Call us 1-888-441-8992
Reviews
Reviews of our parent store Heavy Duty Mobility
-
Extremely fast and responsive. Cares deeply about their customers.
Cameron Tinker Google -
He even called me right after I placed the order online to review everything…
Veronica Trustpilot -
He really knows his products, was really quick looking up the answers…
Michele Stern Google
How we work
-
You call or send the form
Tell us what you move and where. Add drawings if you have them.
-
We check your route
Every door, ramp, turn and elevator, before we quote.
-
We call the factory
We call the maker ourselves for build dates and answers.
-
You get a written quote
It lists the machine, options, freight and build time.
-
Approve and we order
We order from the factory and tell you the ship date.
Delivery
- Freight to your ZIP On your quote before you order
- Built to order Then delivered by freight truck to your dock
Overview
The Pony Express 1050-EL drives a load to where it is needed and then lifts it to working height. It carries up to 1,000 lb on a 23 by 43.5 inch platform and raises it from 18.5 inches to 64 inches off the floor in about 17 seconds.
One operator walks behind and steers with a variable speed control, up to 3 mph in the fast mode and 1.5 mph in the slow mode. Regenerative braking slows the cart and an automatic holding brake keeps it in place when the operator lets go. The cart is rated for a 6 degree incline.
Deep cycle AGM batteries power both the drive and the lift and give up to 10 miles of operation on a charge. The smart charger is on board and plugs into a 120 or 240 volt outlet.
It suits warehouses, plants, labs and stockrooms where loads are moved and then worked at bench height. For heavier loads or bigger platforms, see the Pony Express 1052.
Options
- Accordion safety skirt around the scissor mechanism
- Gravity roller conveyor top
- Ball transfer top
Standard equipment
- Horn, key switch and emergency stop
- High and low speed switch
- Color battery charge indicator
- Foam filled drive tires and non-marking tires
Questions
How high does the 1050-EL lift?
The platform rises from 18.5 inches to 64 inches off the floor, 45.5 inches of travel, in about 17 seconds.
How much can it lift?
Up to 1,000 lb on a flat surface, on a 23 by 43.5 inch platform. For 2,000 or 2,500 lb, see the Pony Express 1052.
Can it drive on a ramp?
It is rated for a 6 degree incline. The automatic holding brake stops the cart rolling when the operator lets go on a slope.
What tops are available?
A gravity roller conveyor top and a ball transfer top are available, along with an accordion safety skirt around the scissor mechanism. Tell us what you load and we quote the right top.
How do I get a price?
Call us or send the form. Tell us what you move, the route and your ZIP. We send a written quote with the machine, freight and build time.
How does it arrive?
Most machines go by freight truck from the factory. Parts and smaller items can go by FedEx or UPS. Freight to your ZIP is on your quote before you order. Rush and overnight shipping cost extra. We sell and ship to US addresses only.
-
