PDQ Portable Dock Lift
- Availability
- Made to order
- Brand
- Autoquip
- Lift capacity
- 4,000 to 6,000 lb
- Platform
- 84 x 60 in
- Vertical travel
- 55.5 in
- Lowered height
- 4.5 in
Price by written quote
- Freight to your ZIP on the quote
Ask for Raphael Perlmann.
Reviews of our parent store Heavy Duty Mobility
- Fast answers We call the factory for you
- The right machine We research every option
- Send your drawings We check that it all fits
- Expedited freight Quoted when you need it sooner
Highlights
- Portable dock lift with a 4 1/2 inch profile
- 60 by 84 inch platform
- Three open platform sides
- 3 standard models, 4,000 to 6,000 lb
Where it works
-
Loading docks
Trucks of different bed heights loaded at one dock.
-
Warehouses
Pallet jacks and dollies moved between grade and dock.
-
Retail and grocery
Deliveries moved from the truck to the floor.
-
Air cargo
Cargo containers rolled across a conveyor deck.
Specifications
Performance
| Lift capacity | 4,000 to 6,000 lb |
|---|---|
| Vertical travel | 55.5 in |
Battery and charging
| Power unit | 5HP |
|---|
Size and weight
| Platform length | 84 in |
|---|---|
| Platform width | 60 in |
| Lowered height | 4.5 in |
| Raised height | 60 in |
More details
| Standard models | 3 |
|---|
Models
3 models
| Model | Lift capacity | Platform | Travel | Lowered height | Raised height | Power unit | Quote this model |
|---|---|---|---|---|---|---|---|
| PDQ-055.5-0040 | 4,000 lb | 84 x 60 in | 55.5 in | 4.5 in | 60 in | 5 hp | Quote this model, PDQ-055.5-0040 |
| PDQ-055.5-0050 | 5,000 lb | 84 x 60 in | 55.5 in | 4.5 in | 60 in | 5 hp | Quote this model, PDQ-055.5-0050 |
| PDQ-055.5-0060 | 6,000 lb | 84 x 60 in | 55.5 in | 4.5 in | 60 in | 5 hp | Quote this model, PDQ-055.5-0060 |
Reviews
Reviews of our parent store Heavy Duty Mobility
-
Extremely fast and responsive. Cares deeply about their customers.
Cameron Tinker Google -
He even called me right after I placed the order online to review everything…
Veronica Trustpilot -
He really knows his products, was really quick looking up the answers…
Michele Stern Google
How we work
-
You call or send the form
Tell us what you move and where. Add drawings if you have them.
-
We check your route
Every door, ramp, turn and elevator, before we quote.
-
We call the factory
We call the maker ourselves for build dates and answers.
-
You get a written quote
It lists the machine, options, freight and build time.
-
Approve and we order
We order from the factory and tell you the ship date.
Delivery
- Freight to your ZIP On your quote before you order
- US addresses only We sell and ship within the US
Overview

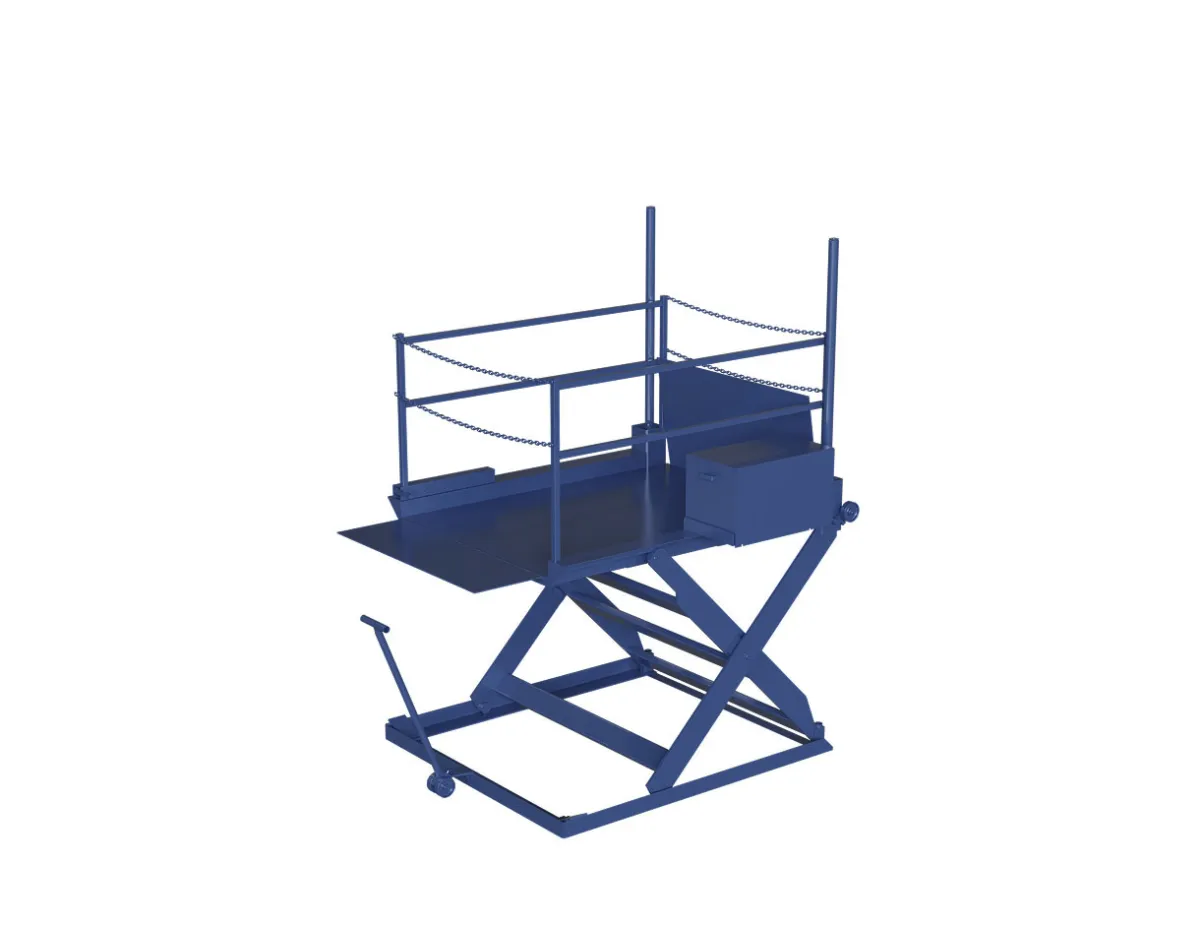

The PDQ is a portable, medium capacity scissor dock lift with a low 4 1/2 inch profile. It has a 60 by 84 inch platform for pallet jacks and hand dollies passing between the ground and the dock.
It is common in automotive, retail and grocery operations. Three open platform sides give several ways to load and unload.
There are 3 standard models that handle 4,000 to 6,000 lb. Vertical travel is 55.5 in. Lowered height is 4.5 in. The platform is 60 by 84 in. Each model has its own row and model number in the table on this page.
What comes standard
- Hinged approach ramp
- Hydraulic velocity fuses that stop the lift if a hose bursts
- Beveled platform sides that protect feet and toes
- Single-phase quick disconnect
- Removable and permanent handrails
Questions
What fits on the PDQ platform?
The platform is 60 by 84 inches, sized for a pallet jack or a hand dolly with its load. Tell us the heaviest load with the jack and we confirm the capacity.
How do we pick the right model?
Start with the heaviest load and its footprint. Pick a model whose capacity covers the load and whose platform fits it, then check the lowered and raised heights against your work heights. Each model has its own row and model number on this page.
What do we send for a quote?
The model number from the table, or the load weight and size and the heights you need. Add the power at the site and your delivery ZIP code. We confirm the model and send a written quote.
How fast does it lift?
The speed depends on the model, the load and the power unit. The maker does not list it for the standard models, so ask us for the time on the model you need.
How do I get a price?
Call us or send the form. Tell us what you move, the route and your ZIP. We send a written quote with the machine, freight and build time.
How does it arrive?
Most machines go by freight truck from the factory. Parts and smaller items can go by FedEx or UPS. Freight to your ZIP is on your quote before you order. Rush and overnight shipping cost extra. We sell and ship to US addresses only.
-
