High Hinge Dumper
- Availability
- Made to order
- Brand
- Autoquip
- Rated capacity
- 2,000 to 6,000 lb
- Platform
- 36 to 54 x 40 to 60 in
- Lowered height
- 0.375 to 0.5 in
Price by written quote
- Freight to your ZIP on the quote
Ask for Raphael Perlmann.
Reviews of our parent store Heavy Duty Mobility
- Fast answers We call the factory for you
- The right machine We research every option
- Send your drawings We check that it all fits
- Expedited freight Quoted when you need it sooner
Highlights
- Dumps loads into raised bins over a high hinge
- Tilts 120 degrees
- Roll-on pan style platform option
- 3 standard models, 2,000 to 6,000 lb
Where it works
-
Assembly cells
Bins of parts tilted so workers reach without bending.
-
Coils and dies
Coils, dies and engine blocks upended at a controlled speed.
-
Bulk handling
Parts and ingredients dumped into a raised hopper.
-
Pallets
Pallets and containers tilted for loading and unloading.
Specifications
Performance
| Rated capacity | 2,000 to 6,000 lb |
|---|---|
| Vertical travel | Ask us |
Battery and charging
| Power unit | 1.5HP |
|---|
Size and weight
| Platform length | 36 to 54 in |
|---|---|
| Platform width | 40 to 60 in |
| Lowered height | 0.375 to 0.5 in |
| Raised height | Ask us |
More details
| Standard models | 3 |
|---|---|
| Tilt angle | 120° |
Models
3 models
| Model | Rated capacity | Platform | Lowered height | Tilt or turn | Power unit | Quote this model |
|---|---|---|---|---|---|---|
| HHD-040036-0020 | 2,000 lb | 36 to 54 x 40 to 60 in | 0.38 in | 120° | 1.5 hp | Quote this model, HHD-040036-0020 |
| HHD-040036-0040 | 4,000 lb | 36 to 54 x 40 to 60 in | 0.38 in | 120° | 1.5 hp | Quote this model, HHD-040036-0040 |
| HHD-040036-0060 | 6,000 lb | 36 to 54 x 40 to 60 in | 0.5 in | 120° | 1.5 hp | Quote this model, HHD-040036-0060 |
Reviews
Reviews of our parent store Heavy Duty Mobility
-
Extremely fast and responsive. Cares deeply about their customers.
Cameron Tinker Google -
He even called me right after I placed the order online to review everything…
Veronica Trustpilot -
He really knows his products, was really quick looking up the answers…
Michele Stern Google
How we work
-
You call or send the form
Tell us what you move and where. Add drawings if you have them.
-
We check your route
Every door, ramp, turn and elevator, before we quote.
-
We call the factory
We call the maker ourselves for build dates and answers.
-
You get a written quote
It lists the machine, options, freight and build time.
-
Approve and we order
We order from the factory and tell you the ship date.
Delivery
- Freight to your ZIP On your quote before you order
- US addresses only We sell and ship within the US
Overview

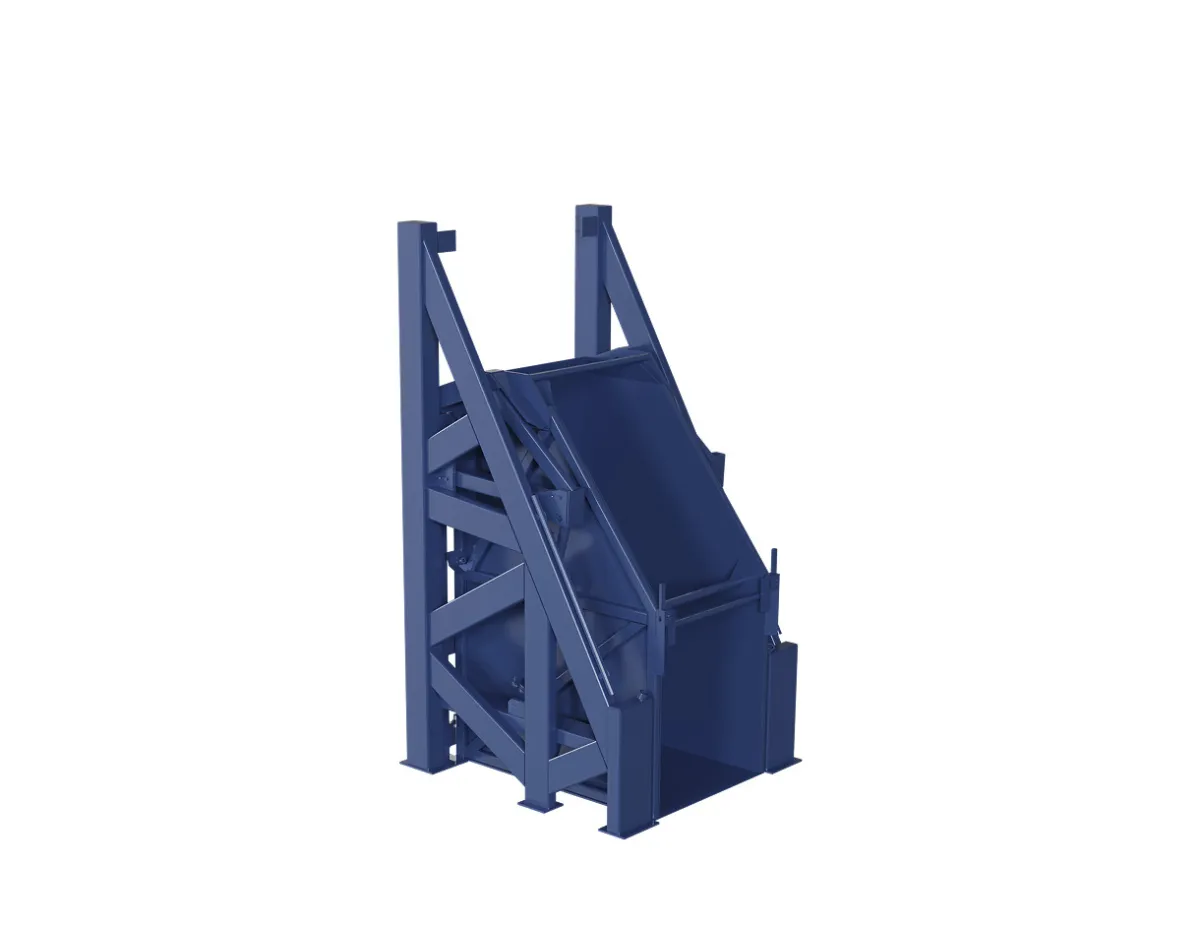

The high hinge dumper tilts non-fragile material through 120 degrees over a high, fixed hinge, usually to empty it into a raised container or collection point. It handles parts, ingredients, letters, packages and trash.
Single-acting hydraulic cylinders do the tilting, with the power unit inside or outside the base frame. Platforms come at a standard lowered height or as a pan style at 1/2 inch or less, so loads can roll on.
There are 3 standard models that handle 2,000 to 6,000 lb. The platform tilts 120 degrees. Lowered height is 0.375 to 0.5 in. Platform widths are 40 to 60 in and lengths are 36 to 54 in. Each model has its own row and model number in the table on this page.
What comes standard
- Tilts 120 degrees over a high fixed hinge
- Pan style roll-on platforms at 1/2 inch or less
- Manual override valves to lower a partly tilted load after a power loss
- Controls prewired and the drive on board. It is lagged to the floor and connected to power
- Chrome-plated cylinder rods and solid steel linkages
Questions
How high can it dump?
The dumper tilts 120 degrees over a fixed high hinge, so the discharge height depends on the model and hinge height. Send us the height of the container rim and the load weight, and we confirm the model.
How do we pick the right model?
Start with the heaviest load and its footprint. Pick a model whose capacity covers the load and whose platform fits it, then the tilt angle that brings the far side of the container within reach. Each model has its own row and model number on this page.
What do we send for a quote?
The model number from the table, or the load weight and size and the heights you need. Add the power at the site and your delivery ZIP code. We confirm the model and send a written quote.
How fast does it tilt?
The speed depends on the model, the load and the power unit. The maker does not list it for the standard models, so ask us for the time on the model you need.
How do I get a price?
Call us or send the form. Tell us what you move, the route and your ZIP. We send a written quote with the machine, freight and build time.
How does it arrive?
Most machines go by freight truck from the factory. Parts and smaller items can go by FedEx or UPS. Freight to your ZIP is on your quote before you order. Rush and overnight shipping cost extra. We sell and ship to US addresses only.
-
