Custom Motorized Die Cart
- Availability
- In stock
- Brand
- EK Tech
Price by written quote
- Freight to your ZIP on the quote
Ask for Raphael Perlmann.
Reviews of our parent store Heavy Duty Mobility
- Fast answers We call the factory for you
- The right machine We research every option
- Send your drawings We check that it all fits
- 2 year warranty On the frame and drive, 1 year on other parts
Highlights
- Lifts and moves dies under power
- Roller or ball transfer top slides dies onto the press
- Capacity, lift and table sized to your dies
- Listed up to 6,000 lb, heavier on request
Pick from nine hitches, or send your drawing for a custom hitch, top or deck.
Where it works
-
Plants
Dies, coils and heavy fixtures moved without a crane.
-
Hospitals
Crash, medication and endoscopy carts that drive themselves.
-
Warehouses
Long stock and oversized loads on one powered deck.
-
Government and defense
Remote controlled movers for confined areas.
Specifications
Performance
| Load capacity | Ask us |
|---|---|
| Top speed | Ask us |
| Lift | Powered, minimum and maximum height set for your press |
Battery and charging
| Run time per charge | Ask us |
|---|---|
| Battery | Ask us |
Build and safety
| Frame | Welded, stainless steel and aluminum available |
|---|
More details
| Payload capacity | Listed up to 6,000 lb, scalable |
|---|---|
| Table size | Built to the size of your dies |
Warranty
For the Custom Motorized Die Cart
- 2 years Frame and drive
- 1 year Other parts
Returns and changes
- Return within 30 days with a return authorization number
- Cancel free before it ships
- Return freight on the original pallet is yours, with a 20% restocking fee after it ships
- Any damage to a returned machine is charged to you
- Custom builds are final
Questions about coverage? Call us 1-888-441-8992
Reviews
Reviews of our parent store Heavy Duty Mobility
-
Extremely fast and responsive. Cares deeply about their customers.
Cameron Tinker Google -
He even called me right after I placed the order online to review everything…
Veronica Trustpilot -
He really knows his products, was really quick looking up the answers…
Michele Stern Google
How we work
-
You call or send the form
Tell us what you move and where. Add drawings if you have them.
-
We check your route
Every door, ramp, turn and elevator, before we quote.
-
We call the factory
We call the maker ourselves for build dates and answers.
-
You get a written quote
It lists the machine, options, freight and build time.
-
Approve and we order
We order from the factory and tell you the ship date.
Delivery
- Freight to your ZIP On your quote before you order
- Built to order Then delivered by freight truck to your dock
Overview

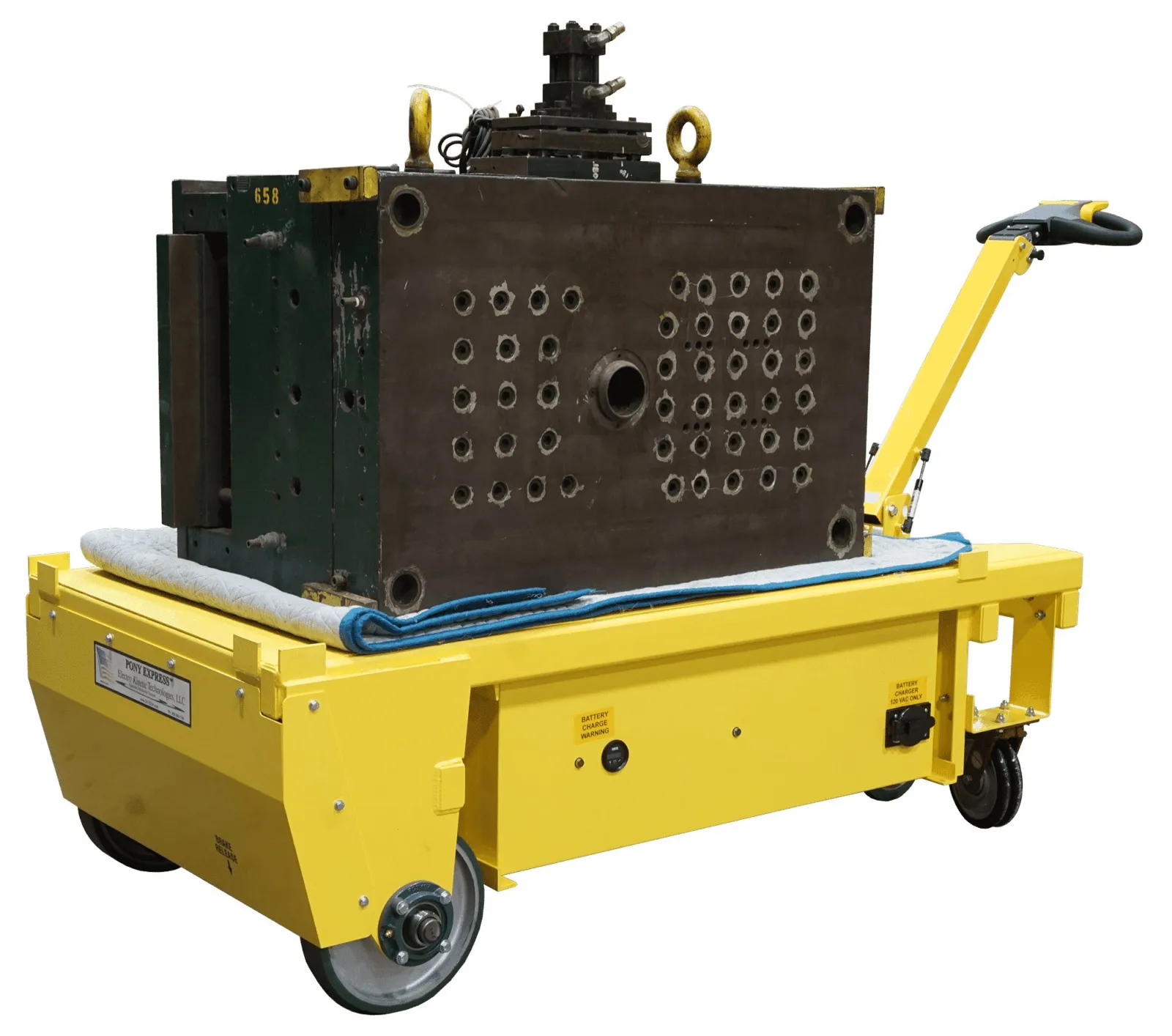

A motorized die cart moves a die between storage and the press and lifts it to bolster height. A roller conveyor or ball transfer top lets the operator slide the die across instead of dragging it, prying it or lifting it with a crane.
Each cart is built on a standard design and sized to your work. The capacity, the lowest and highest lift height, the table size and the size of the conveyor or ball transfer top are set first. The line is listed up to 6,000 lb, and heavier builds are engineered on request.
Safety options include accordion skirting around the lift, safety edging at pinch points, collision detection, a foot control switch and an on board scale that stops the cart being overloaded. Magnetic sensor docking lines the cart up with the press the same way every time.
Every cart in this line is built to order, so it is priced by written quote. Send us what you move, its weight and size, and the route it travels, including doors, elevators and ramps. We confirm the build with the factory and send the quote with the lead time.
Options
- Roller conveyor or ball transfer top
- Side mounted, pendant, dual station or wireless controls
- Foot control switch
- Accordion skirting and safety edging
- Collision detection
- On board scale
- Magnetic sensor docking
- Stainless steel or aluminum frame, NEMA or IP rated enclosures
- Lithium iron phosphate batteries
Questions
How heavy a die can the cart carry?
The line is listed up to 6,000 lb and capacity is scalable, so heavier builds are engineered on request. Send us the weight and footprint of your heaviest die and the press it serves.
Can it move a die onto the press without a crane?
Yes. The cart raises the die to bolster height and the operator slides it across on the roller conveyor or ball transfer top. Magnetic sensor docking can line the cart up with the press each time.
What lift height can I get?
The lowest and highest lift heights are set when the cart is engineered, from your bolster height and how low the cart has to load. We confirm the travel with the factory.
Can it be built for a wash down area?
Yes. Stainless steel and aluminum frames are available, and NEMA or IP rated enclosures protect the electronics.
How do I get a price?
Call us or send the form. Tell us what you move, the route and your ZIP. We send a written quote with the machine, freight and build time.
How does it arrive?
Most machines go by freight truck from the factory. Parts and smaller items can go by FedEx or UPS. Freight to your ZIP is on your quote before you order. Rush and overnight shipping cost extra. We sell and ship to US addresses only.
-
