- Towing capacity
- 7,000 lb
- Top speed
- 3 mph
- Run time per charge
- 4 to 8 hours
- Footprint
- 45 x 27 in
CartCaddy5W Electric Cart Pusher
- Availability
- Made to order
- Brand
- DJ Products
- Model
- CartCaddy5W
Price by written quote
Price, freight to your ZIP and lead time on one sheet
- Freight to your ZIP On your quote before you order
- US addresses only We sell and ship within the US
- Fast answers We call the factory for you
- The right machine We research every option
- Send your drawings We check that it all fits
- Expedited freight Quoted when you need it sooner
Reviews of our parent store Heavy Duty Mobility
Similar models
Other machines in this line, nearest in capacity
- 7,000 lb Towing capacity CartCaddy5W Stainless Steel Cart Pusher Top speed3 mph Run time per charge4 to 8 hours Battery36 V, three 12 V batteries Made to order View model
-
7,000 lb
Towing capacity
CarCaddyVP 7K Electric Vehicle Puller
Top speed3 mph
Run time per chargeAsk us
Battery36 V, three batteries
Made to order
View model
-
8,000 lb
Towing capacity
AircraftCaddy Magic Arm 8K Aircraft Tug
Top speed2 mph
Run time per chargeAsk us
Battery36 V, three 12 V batteries
Made to order
View model
Highlights
-
Moves wheeled carts up to 7,000 lb
-
Latches to the cart side, so no tow arms to fit
-
Runs 4 to 8 hours on a charge
-
High output option raises the rating to 10,000 lb
Where it works
-
Hospitals
Supply, linen and dialysis carts through halls and elevators.
-
Plants
Parts carts and wheeled equipment between work cells.
-
Food and pharma
Stainless steel pushers for areas with sanitary rules.
-
Paper and print
Paper rolls and spools moved to the line.
Specifications
Performance
| Towing capacity | 7,000 lb |
|---|---|
| Top speed | 3 mph |
| Drive | 800 lb differential transaxle |
| Speed | 0 to 3 mph forward and reverse |
| Turning | Pivots 180 degrees under the arm |
Battery and charging
| Run time per charge | 4 to 8 hours |
|---|---|
| Battery | 36 V, three 12 V batteries |
| Charger | Automatic, 120 VAC single phase |
| Batteries | 36 V, three 12 V batteries |
| Run time | 4 to 8 hours, depending on the load |
Size and weight
| Overall length | 45 in |
|---|---|
| Overall width | 27 in |
| Overall height | 41.5 in |
| Body length | 45 in, attachment not included |
Build and safety
| Frame | Sheet steel |
|---|---|
| Tires | Non-marking |
More details
| Cart capacity | 7,000 lb, 10,000 lb with the high output motor controller option |
|---|
Reviews of our parent store Heavy Duty Mobility
Call 1-888-441-8992
Ask for Raphael
He even called me right after I placed the order online to review everything…
Veronica Trustpilot
He really knows his products, was really quick looking up the answers…
Michele Stern Google
Thank you so very much for offering a much better solution for my unique situation…
LuAnn Lozano Trustpilot
Your company was great… from the ordering to the delivery.
Sheila Nelson Google
Great customer service they follow up and go the extra mile…
Jeff Spann Google
1 of 6
How we work
-
You call or send the form
Tell us what you move and where. Add drawings if you have them.
-
We check your route
Every door, ramp, turn and elevator, before we quote.
-
We call the factory
We call the maker ourselves for build dates and answers.
-
You get a written quote
It lists the machine, options, freight and build time.
-
Approve and we order
We order from the factory and tell you the ship date.
Overview

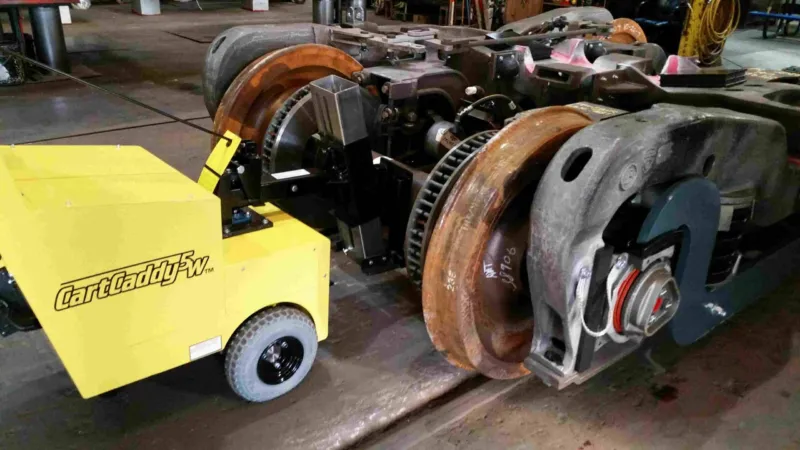

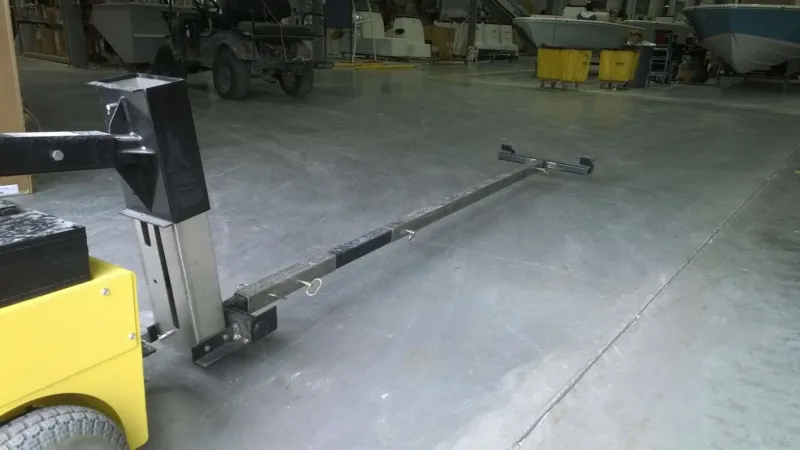

The CartCaddy5W pushes and pulls wheeled carts and equipment up to 7,000 lb. It is built for carts with two swivel casters and two fixed wheels. A steel attachment on a powered lift arm latches to the swivel end of the cart and carries part of the cart weight onto the drive tires for traction.
One operator steers with a twist grip that sets speed from 0 to 3 mph forward and reverse. Three 12 volt batteries give 4 to 8 hours of run time, depending on the load. The automatic charger plugs into a standard 120 volt outlet.
Options include a 5th wheel arm, a custom attachment, a safety stop switch and guard kit, foam filled tires, a horn and light, ballast weight, a dual drive wheel kit and a stainless steel frame. A high output motor controller raises the rating to 10,000 lb.
Questions
Which carts does it move?
Carts and wheeled equipment with two swivel casters and two fixed wheels. The attachment latches to the swivel end. Send us a photo of the cart and its casters and we confirm the attachment.
How long does a charge last?
4 to 8 hours of run time, depending on how heavy the loads are. The automatic charger plugs into a standard 120 volt outlet.
Can it move more than 7,000 lb?
Yes, with the high output motor controller option it is rated for up to 10,000 lb. Real performance depends on the floor, the incline and the wheels on the cart, so tell us all three.
How fast does it go?
0 to 3 mph forward and reverse, set by a twist grip on the handle.
How do I get a price?
Call us or send the form. Tell us what you move, the route and your ZIP. We send a written quote with the machine, freight and build time.
How does it arrive?
Most machines go by freight truck from the factory. Parts and smaller items can go by FedEx or UPS. Freight to your ZIP is on your quote before you order. Rush and overnight shipping cost extra. We sell and ship to US addresses only.
