TorkLift T3 Triple Pantograph Scissor Lift
- Availability
- Made to order
- Brand
- Autoquip
- Lift capacity
- 2,000 to 10,000 lb
- Platform
- 33 to 187 x 24 to 80 in
- Raised height
- 64.5 to 332.25 in
- Lowered height
- 12.5 to 32.25 in
Price by written quote
- Freight to your ZIP on the quote
Ask for Raphael Perlmann.
Reviews of our parent store Heavy Duty Mobility
- Fast answers We call the factory for you
- The right machine We research every option
- Send your drawings We check that it all fits
- Expedited freight Quoted when you need it sooner
Highlights
- Three stacked scissors for high travel
- Small footprint for its height
- Remote power unit with prewired controls
- 30 standard models, 2,000 to 10,000 lb
Where it works
-
Assembly
Parts and fixtures held at waist height at a work cell.
-
Pallets
Pallets raised so workers load and unload without bending.
-
Heavy loads
Dies, molds and machines lifted and repositioned.
-
Order picking
The picker and workstation raised to each carousel level.
Specifications
Performance
| Lift capacity | 2,000 to 10,000 lb |
|---|---|
| Vertical travel | 48 to 300 in |
Battery and charging
| Power unit | 1HP, 1.5HP, 5HP |
|---|
Size and weight
| Platform length | 33 to 187 in |
|---|---|
| Platform width | 24 to 80 in |
| Lowered height | 12.5 to 32.25 in |
| Raised height | 64.5 to 332.25 in |
More details
| Standard models | 30 |
|---|
Models
30 models
| Model | Lift capacity | Platform | Travel | Lowered height | Raised height | Power unit | Quote this model |
|---|---|---|---|---|---|---|---|
| TRK-048-0040-T3 | 4,000 lb | 33 to 57 x 32 to 56 in | 48 in | 16.5 in | 64.5 in | 1.5 hp | Quote this model, TRK-048-0040-T3 |
| TRK-048-0060-T3 | 6,000 lb | 34 to 58 x 34 to 58 in | 48 in | 19 in | 67 in | 1.5 hp | Quote this model, TRK-048-0060-T3 |
| TRK-060-0020-T3 | 2,000 lb | 38.88 to 62.88 x 24 to 48 in | 60 in | 15.75 in | 75.75 in | 1 hp | Quote this model, TRK-060-0020-T3 |
| TRK-060-0040-T3 | 4,000 lb | 39 to 63 x 32 to 56 in | 60 in | 17.06 in | 77.06 in | 1.5 hp | Quote this model, TRK-060-0040-T3 |
| TRK-060-0060-T3 | 6,000 lb | 39 to 63 x 32 to 56 in | 60 in | 17.06 in | 77.06 in | 1.5 hp | Quote this model, TRK-060-0060-T3 |
| TRK-072-0020-T3 | 2,000 lb | 44 to 68 x 30 to 54 in | 72 in | 15.75 in | 87.75 in | 1 hp | Quote this model, TRK-072-0020-T3 |
| TRK-072-0040-T3 | 4,000 lb | 45 to 69 x 34 to 58 in | 72 in | 17.56 in | 89.56 in | 1.5 hp | Quote this model, TRK-072-0040-T3 |
| TRK-072-0060-T3 | 6,000 lb | 45 to 69 x 32 to 56 in | 72 in | 18.44 in | 90.44 in | 1.5 hp | Quote this model, TRK-072-0060-T3 |
| TRK-084-0020-T3 | 2,000 lb | 51 to 75 x 32 to 56 in | 84 in | 17.06 in | 101.06 in | 1.5 hp | Quote this model, TRK-084-0020-T3 |
| TRK-084-0040-T3 | 4,000 lb | 58 to 82 x 40 to 64 in | 84 in | 19.56 in | 103.56 in | 1.5 hp | Quote this model, TRK-084-0040-T3 |
| TRK-084-0060-T3 | 6,000 lb | 54 to 78 x 36 to 60 in | 84 in | 22 in | 106 in | 1.5 hp | Quote this model, TRK-084-0060-T3 |
| TRK-084-0100-T3 | 10,000 lb | 52 to 68 x 42 to 63 in | 84 in | 23.38 in | 107.38 in | 5 hp | Quote this model, TRK-084-0100-T3 |
| TRK-096-0020-T3 | 2,000 lb | 56 to 80 x 38 to 62 in | 96 in | 22 in | 118 in | 1.5 hp | Quote this model, TRK-096-0020-T3 |
| TRK-096-0040-T3 | 4,000 lb | 58 to 82 x 40 to 64 in | 96 in | 20.56 in | 116.56 in | 5 hp | Quote this model, TRK-096-0040-T3 |
| TRK-096-0060-T3 | 6,000 lb | 59 to 83 x 46 to 70 in | 96 in | 21.25 in | 117.25 in | 5 hp | Quote this model, TRK-096-0060-T3 |
| TRK-108-0020-T3 | 2,000 lb | 63 to 87 x 42 to 66 in | 108 in | 18.63 in | 126.63 in | 1.5 hp | Quote this model, TRK-108-0020-T3 |
| TRK-108-0040-T3 | 4,000 lb | 64 to 88 x 48 to 72 in | 108 in | 22 in | 130 in | 5 hp | Quote this model, TRK-108-0040-T3 |
| TRK-108-0060-T3 | 6,000 lb | 65 to 89 x 54 to 78 in | 108 in | 12.5 in | 120.5 in | 5 hp | Quote this model, TRK-108-0060-T3 |
| TRK-120-0020-T3 | 2,000 lb | 69 to 93 x 48 to 72 in | 120 in | 18.56 in | 138.56 in | 1.5 hp | Quote this model, TRK-120-0020-T3 |
| TRK-120-0040-T3 | 4,000 lb | 70 to 94 x 48 to 72 in | 120 in | 22.56 in | 142.56 in | 5 hp | Quote this model, TRK-120-0040-T3 |
| TRK-120-0060-T3 | 6,000 lb | 70 to 94 x 56 to 80 in | 120 in | 22.56 in | 142.56 in | 5 hp | Quote this model, TRK-120-0060-T3 |
| TRK-132-0020-T3 | 2,000 lb | 75 to 99 x 54 to 78 in | 132 in | 22 in | 154 in | 1.5 hp | Quote this model, TRK-132-0020-T3 |
| TRK-132-0040-T3 | 4,000 lb | 77 to 101 x 56 to 80 in | 132 in | 25.06 in | 157.06 in | 5 hp | Quote this model, TRK-132-0040-T3 |
| TRK-132-0060-T3 | 6,000 lb | 77 to 101 x 56 to 80 in | 132 in | 25.06 in | 157.06 in | 5 hp | Quote this model, TRK-132-0060-T3 |
| TRK-144-0020-T3 | 2,000 lb | 81 to 105 x 56 to 80 in | 144 in | 22.56 in | 166.56 in | 5 hp | Quote this model, TRK-144-0020-T3 |
| TRK-144-0040-T3 | 4,000 lb | 81 to 105 x 56 to 80 in | 144 in | 22.56 in | 166.56 in | 5 hp | Quote this model, TRK-144-0040-T3 |
| TRK-144-0060-T3 | 6,000 lb | 82 to 106 x 48 to 72 in | 144 in | 27.75 in | 171.75 in | 5 hp | Quote this model, TRK-144-0060-T3 |
| TRK-180-0060-T3 | 6,000 lb | 96 to 125 x 48 to 72 in | 180 in | 29 in | 209 in | 5 hp | Quote this model, TRK-180-0060-T3 |
| TRK-192-0080-T3 | 8,000 lb | 96 to 125 x 48 to 72 in | 192 in | 29 in | 221 in | 5 hp | Quote this model, TRK-192-0080-T3 |
| TRK-300-0020-T3 | 2,000 lb | 144 to 187 x 48 to 72 in | 300 in | 32.25 in | 332.25 in | 5 hp | Quote this model, TRK-300-0020-T3 |
Reviews
Reviews of our parent store Heavy Duty Mobility
-
Extremely fast and responsive. Cares deeply about their customers.
Cameron Tinker Google -
He even called me right after I placed the order online to review everything…
Veronica Trustpilot -
He really knows his products, was really quick looking up the answers…
Michele Stern Google
How we work
-
You call or send the form
Tell us what you move and where. Add drawings if you have them.
-
We check your route
Every door, ramp, turn and elevator, before we quote.
-
We call the factory
We call the maker ourselves for build dates and answers.
-
You get a written quote
It lists the machine, options, freight and build time.
-
Approve and we order
We order from the factory and tell you the ship date.
Delivery
- Freight to your ZIP On your quote before you order
- US addresses only We sell and ship within the US
Overview

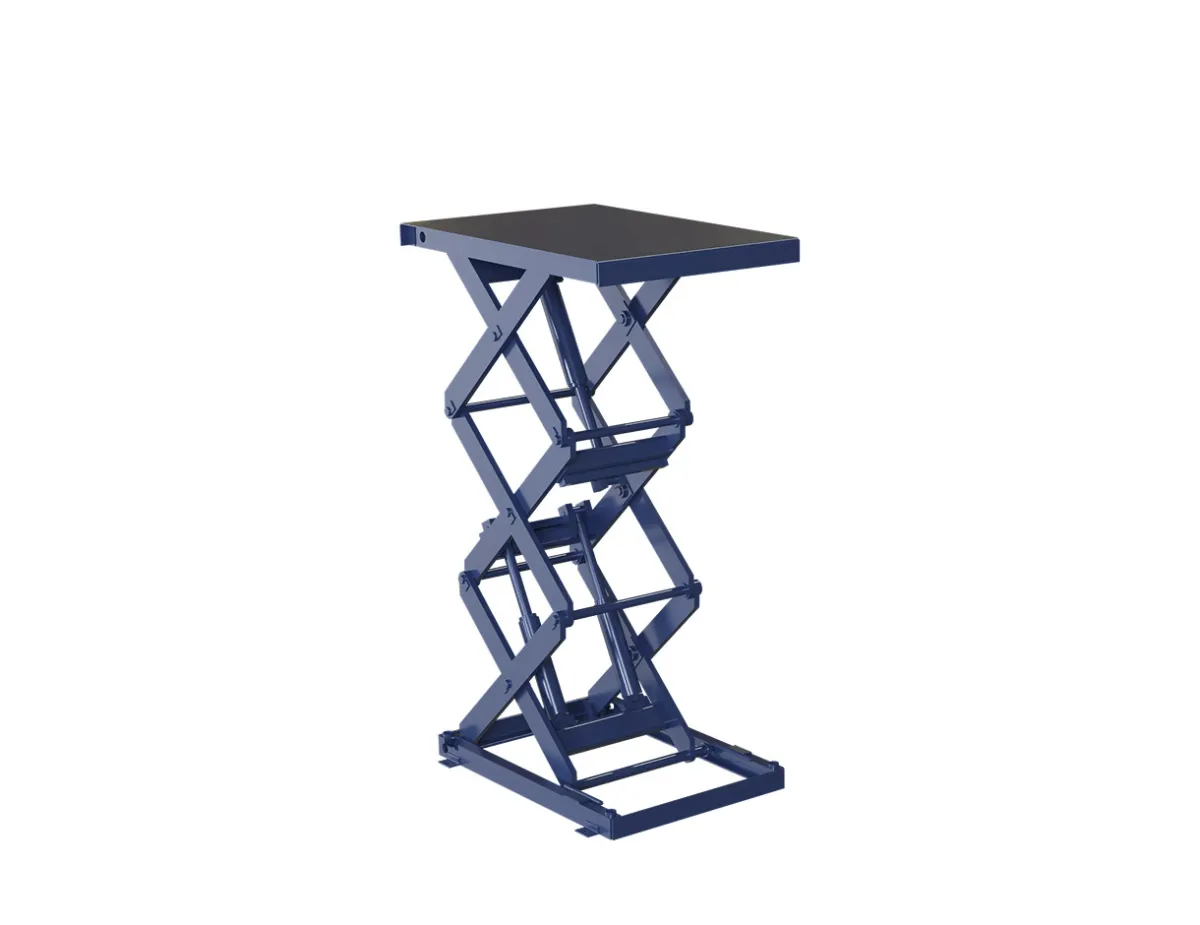

The TorkLift T3 stacks three sets of scissors, pinned together and raised by common hydraulic cylinders. It reaches high landings from a small footprint.
Controls come prewired to a remote power unit. It is lagged to the floor and connected to power.
There are 30 standard models that handle 2,000 to 10,000 lb. Vertical travel is 48 to 300 in. Lowered height is 12.5 to 32.25 in. Platform widths are 24 to 80 in and lengths are 33 to 187 in. Each model has its own row and model number in the table on this page.
What comes standard
- Captured rollers and a two-piece self-aligning cylinder
- One-piece removable center axle pin
- Spiral wound bearings at the pivot points
- Controls prewired to a remote power unit
Questions
How do we pick the right model?
Start with the heaviest load and its footprint. Pick a model whose capacity covers the load and whose platform fits it, then check the lowered and raised heights against your work heights. Each model has its own row and model number on this page.
What do we send for a quote?
The model number from the table, or the load weight and size and the heights you need. Add the power at the site and your delivery ZIP code. We confirm the model and send a written quote.
How fast does it lift?
The speed depends on the model, the load and the power unit. The maker does not list it for the standard models, so ask us for the time on the model you need.
How do I get a price?
Call us or send the form. Tell us what you move, the route and your ZIP. We send a written quote with the machine, freight and build time.
How does it arrive?
Most machines go by freight truck from the factory. Parts and smaller items can go by FedEx or UPS. Freight to your ZIP is on your quote before you order. Rush and overnight shipping cost extra. We sell and ship to US addresses only.
-
