Laundry and Bin Tuggers

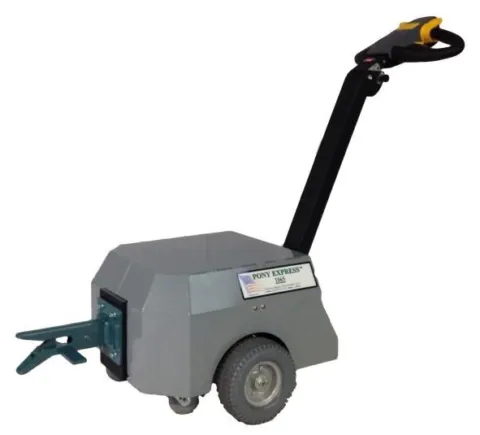

Pony Express 1065-LS Linen and Laundry Tugger

Availability
In stock
Brand
EK Tech
Model
1065-LS
Towing capacity
5,000 lb on a flat floor
Run time per charge
8 hours
Top speed
3 mph

Other sizes in this line

Price by written quote

  • Freight to your ZIP on the quote
Call us 1-888-441-8992
Get a written quote

Ask for Raphael Perlmann.

5.042 reviews4.836 reviews

Reviews of our parent store Heavy Duty Mobility

  • Fast answers We call the factory for you
  • The right machine We research every option
  • Send your drawings We check that it all fits
  • 2 year warranty On the frame and drive, 1 year on other parts

Highlights

  • Tows bulk laundry bins up to 5,000 lb
  • Quick connect hitch, no changes to your bins
  • 2 year frame and motor warranty

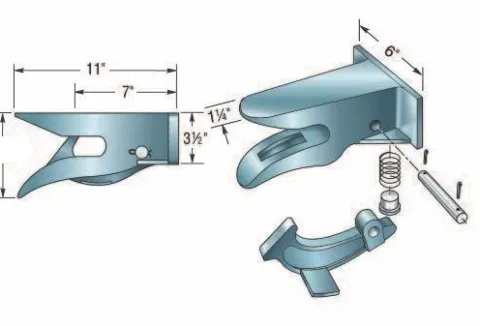

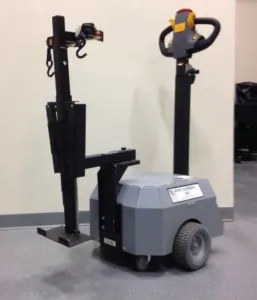

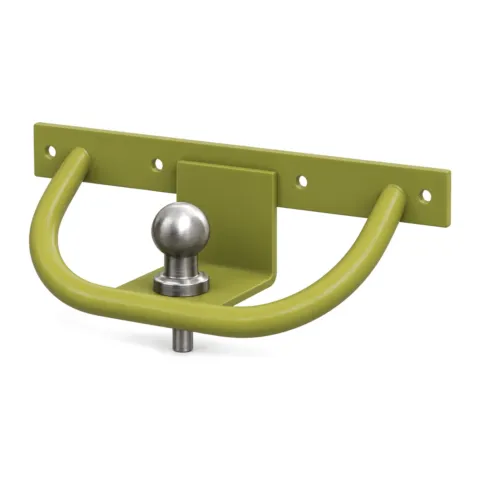

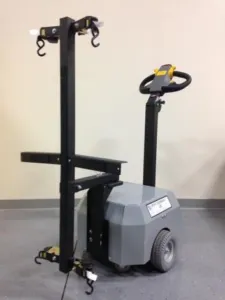

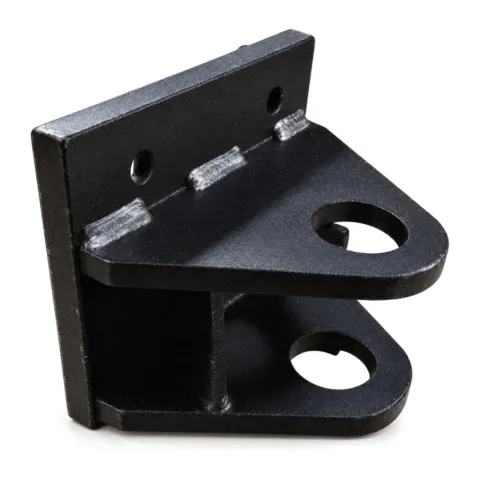

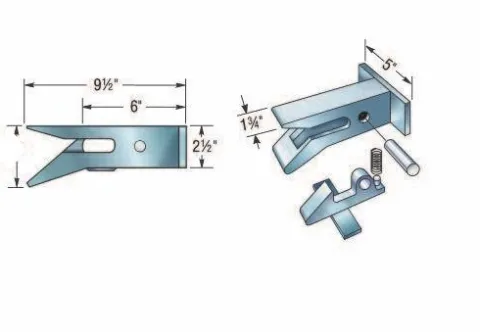

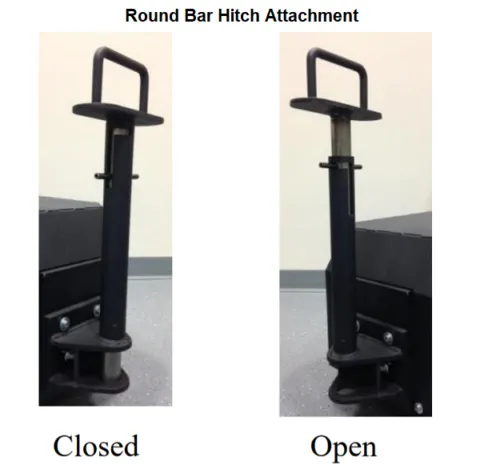

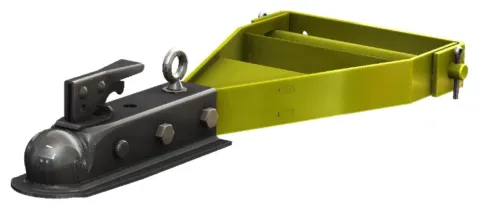

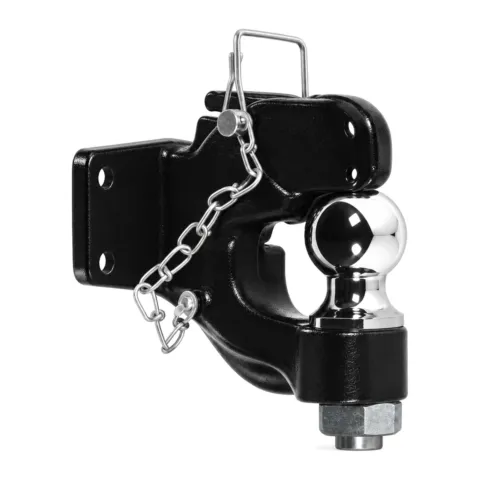

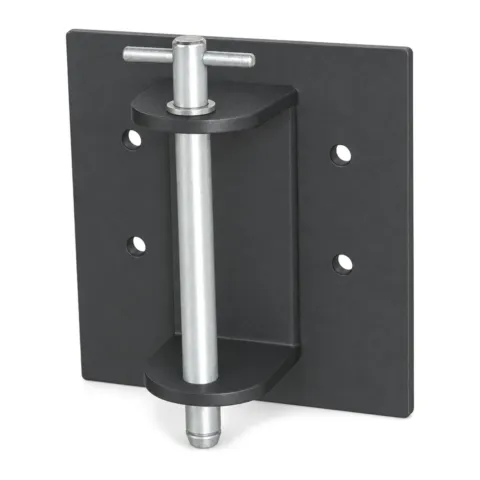

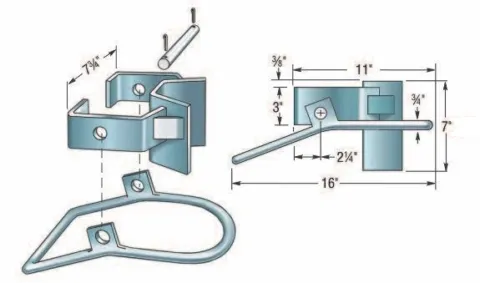

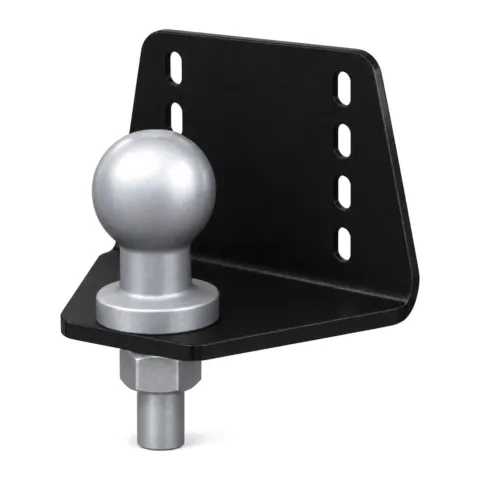

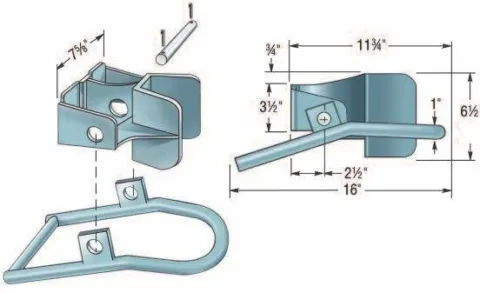

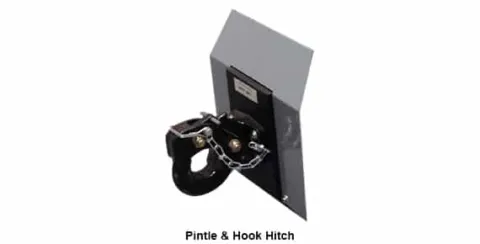

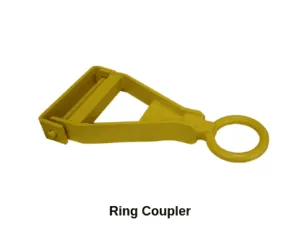

Pick from nine hitches, or send your drawing for a custom hitch, top or deck.

Where it works

  • Hospitals

    Soiled and clean linen between floors, elevators and the laundry.

  • Laundries

    Trains of bulk bins between the soil and clean sides.

  • Hotels

    Linen carts from the laundry to guest floors through service halls.

  • Long routes

    Bin to bin hitch moves several bins in one trip.

Specifications

Performance

Pony Express 1065-LS Linen and Laundry Tugger specifications, performance
Towing capacity 5,000 lb
Top speed 3 mph

Battery and charging

Pony Express 1065-LS Linen and Laundry Tugger specifications, battery and charging
Run time per charge 8 hours
Battery AGM, deep cycle
Charger 120/240 VAC, 50/60 Hz, UL/cUL, CE listed on board smart charging system
Recharging time Approximately 4 hours
Charging temperature -23° C to +60° C

Size and weight

Pony Express 1065-LS Linen and Laundry Tugger specifications, size and weight
Shipping dimensions (L x W x H) 48" x 40" x 60"
Shipping weight 500 lb

Build and safety

Pony Express 1065-LS Linen and Laundry Tugger specifications, build and safety
Parking brake Automatic holding brake prevents cart from moving on inclines when parked
Chassis Welded steel with powder coated finish
Drive wheel Puncture proof, non-marking
Operating temperature 0° C to +40° C

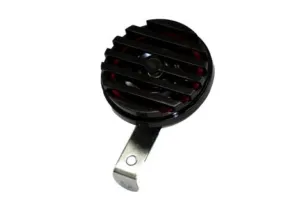

Noise level < 65 dBA, 115 dB horn for industrial applications
Ingress protection Controller IP 54
Other safety procedures Emergency belly button stop switch, Horn, Automatic sleep mode, conserves battery power when not in use, Hi/Low Speed Switch
Controller Dead man operation. Unit comes to a controlled stop when operator removes hands from controls

More details

Pony Express 1065-LS Linen and Laundry Tugger specifications, more details
Handle Ergonomic handle design with thumb wheel controls

Options and parts

Hitches, options and parts we sell for this machine. Add them to your written quote or call us.

Options 1

Accessories 25

Show 15 more

Documents

Warranty

For the Pony Express 1065-LS Linen and Laundry Tugger

  • 2 years Frame and drive
  • 1 year Other parts

Returns and changes

  • Return within 30 days with a return authorization number
  • Cancel free before it ships
  • Return freight on the original pallet is yours, with a 20% restocking fee after it ships
  • Any damage to a returned machine is charged to you
  • Custom builds are final

Questions about coverage? Call us 1-888-441-8992

Reviews

Reviews of our parent store Heavy Duty Mobility

5.042 reviews4.836 reviews

  • Extremely fast and responsive. Cares deeply about their customers.

    Cameron Tinker Google

  • He even called me right after I placed the order online to review everything…

    Veronica Trustpilot

  • He really knows his products, was really quick looking up the answers…

    Michele Stern Google

How we work

  1. You call or send the form

    Tell us what you move and where. Add drawings if you have them.

  2. We check your route

    Every door, ramp, turn and elevator, before we quote.

  3. We call the factory

    We call the maker ourselves for build dates and answers.

  4. You get a written quote

    It lists the machine, options, freight and build time.

  5. Approve and we order

    We order from the factory and tell you the ship date.

Delivery

  • Freight to your ZIP On your quote before you order
  • Built to order Then delivered by freight truck to your dock

Overview

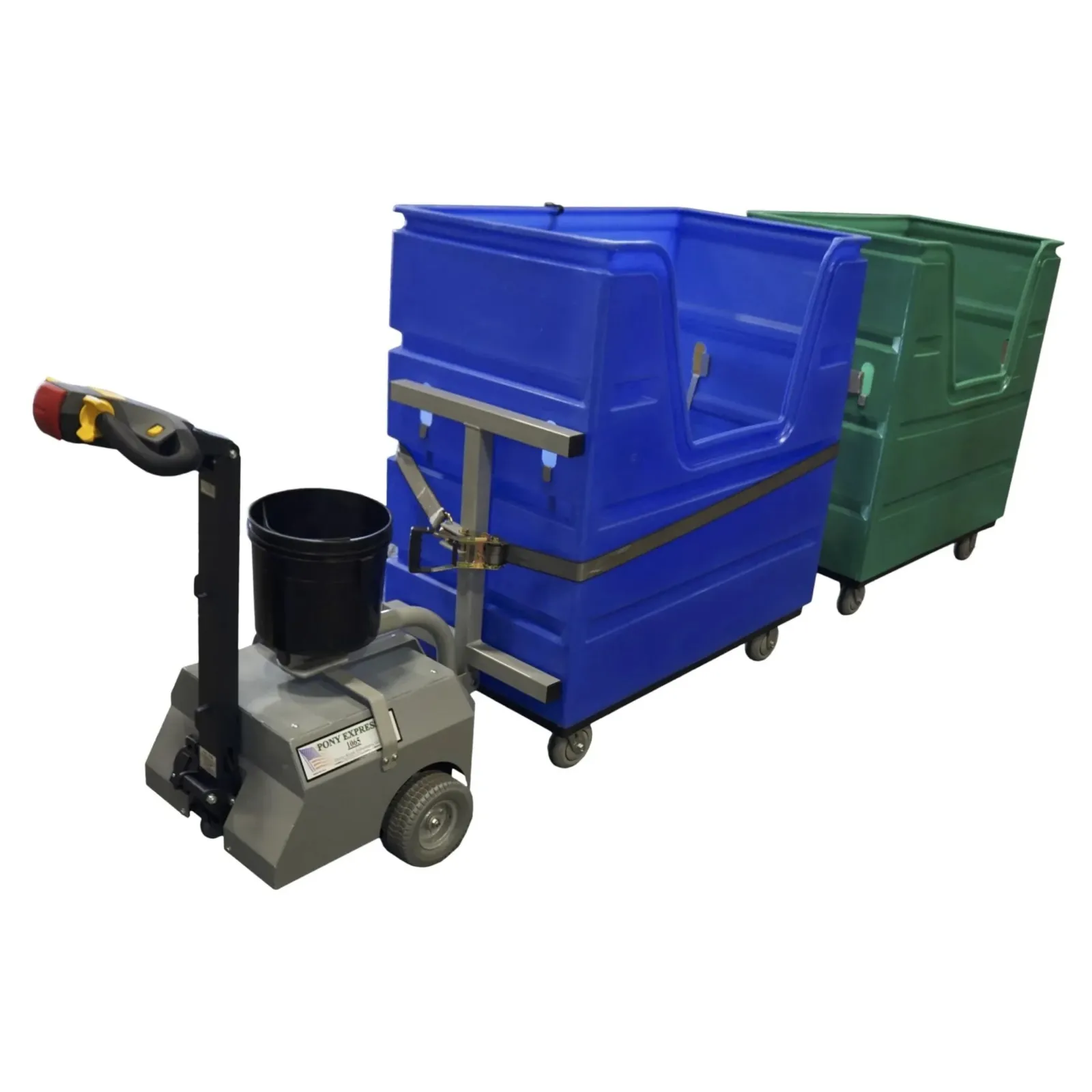

The Pony Express 1065-LS tows bulk laundry bins up to 5,000 lb on a flat floor in hospitals, hotels and resorts. The quick connect hitch couples to the bins without modifying them.

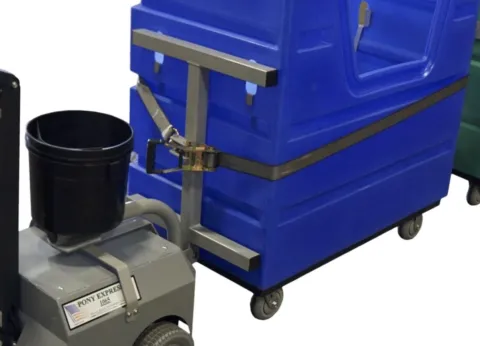

The optional bin to bin hitch links several bins into one train, so one trip replaces several and the bins do not knock into each other. Two speed ranges, 0 to 1.5 mph and 0 to 3 mph, cover tight corridors and long hallways.

Key features

  • Tows bulk laundry bins up to 5,000 lb on a flat floor
  • Quick connect hitch system with no bin modifications required
  • Optional bin to bin hitch moves several bins in one trip without collisions
  • High torque 24 V DC motor with two speed ranges, 0 to 1.5 mph and 0 to 3 mph
  • Foam filled, non-marking drive tires for quiet indoor floors
  • AGM deep cycle batteries with an onboard UL, cUL and CE listed charger
  • Regenerative braking and an automatic holding brake for ramps
  • Handle with horn, power switch, emergency stop and charge level indicator

Questions

How much can the 1065-LS tow?

Up to 5,000 lb on a flat floor. Send us the cart weights, the floor and any ramps on the route and we confirm the model in a written quote.

Do our laundry bins need changes?

No. The quick connect hitch couples to the bins as they are. The optional bin to bin hitch works with MOD72P series bins or an equivalent.

How long does the 1065-LS run on a charge?

Up to 8 hours on its AGM deep cycle batteries. It recharges in about 4 hours from the onboard charger.

How fast does it go?

The low range runs 0 to 1.5 mph for tight corridors and the high range 0 to 3 mph for long hallways.

How do I get a price?

Call us or send the form. Tell us what you move, the route and your ZIP. We send a written quote with the machine, freight and build time.

How does it arrive?

Most machines go by freight truck from the factory. Parts and smaller items can go by FedEx or UPS. Freight to your ZIP is on your quote before you order. Rush and overnight shipping cost extra. We sell and ship to US addresses only.
