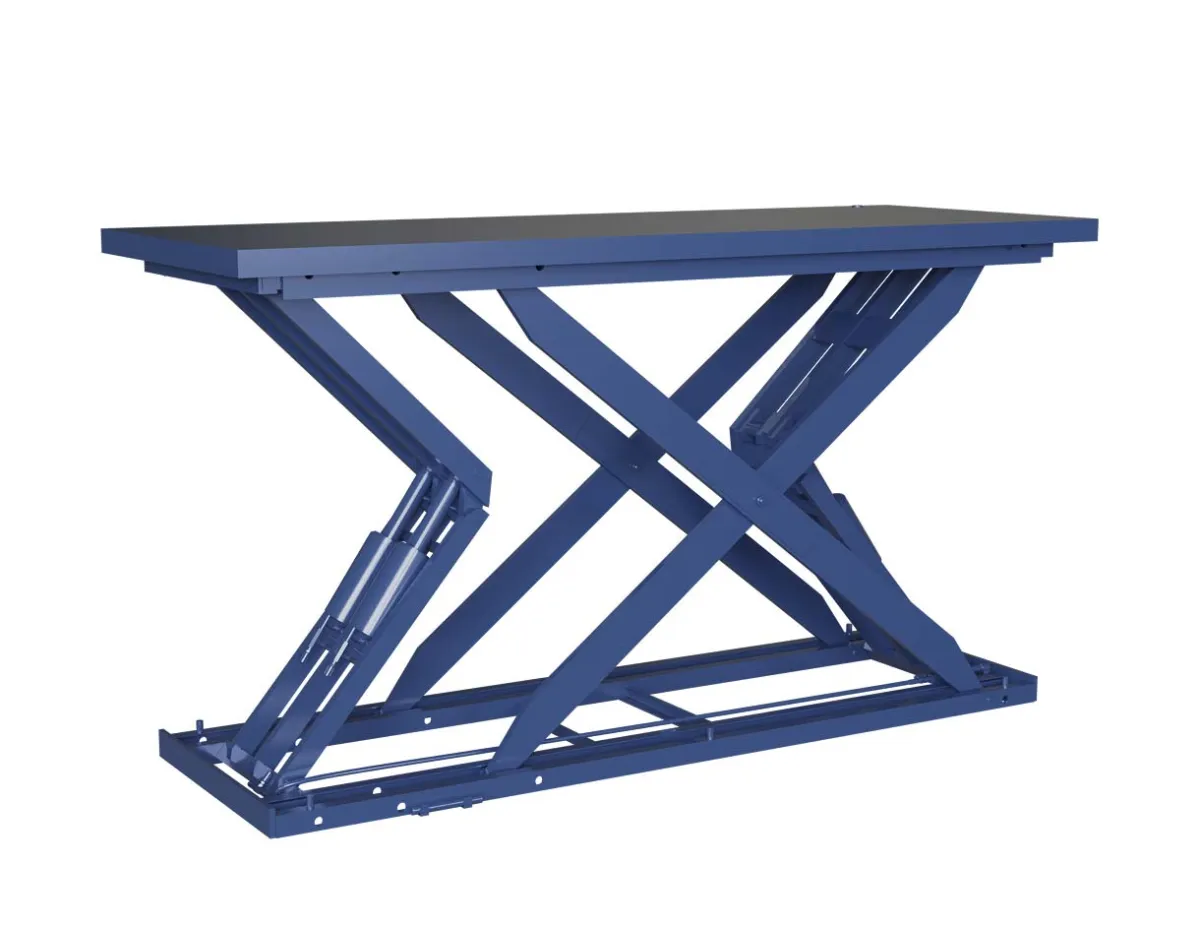

Double Arm Scissor Lift Table
- Availability
- Discontinued Replaced by Super Titan Scissor Lift Table
- Brand
- Autoquip
- Lift capacity
- 5,400 to 24,000 lb
- Platform
- 94 to 150 x 42 to 62 in
- Raised height
- 46 to 84 in
- Lowered height
- 10 to 12 in
Ask for Raphael Perlmann.
Reviews of our parent store Heavy Duty Mobility
- Fast answers We call the factory for you
- The right machine We research every option
- Send your drawings We check that it all fits
- Expedited freight Quoted when you need it sooner
Highlights
- Replaced by the Super Titan scissor lift tables
- Model numbers kept for parts and service
Where it works
-
Assembly
Parts and fixtures held at waist height at a work cell.
-
Pallets
Pallets raised so workers load and unload without bending.
-
Heavy loads
Dies, molds and machines lifted and repositioned.
-
Order picking
The picker and workstation raised to each carousel level.
Specifications
Performance
| Lift capacity | 5,400 to 24,000 lb |
|---|---|
| Vertical travel | 36 to 72 in |
Battery and charging
| Power unit | 1.5HP |
|---|
Size and weight
| Platform length | 94 to 150 in |
|---|---|
| Platform width | 42 to 62 in |
| Lowered height | 10 to 12 in |
| Raised height | 46 to 84 in |
More details
| Standard models | 16 |
|---|
Models
16 models
| Model | Lift capacity | Platform | Travel | Lowered height | Raised height | Power unit |
|---|---|---|---|---|---|---|
| DRM-036-0080 | 8,000 lb | 94.5 to 114 x 42 to 62 in | 36 in | 10 in | 46 in | 1.5 hp |
| DRM-036-0120 | 12,000 lb | 94.5 to 114 x 42 to 62 in | 36 in | 10 in | 46 in | 1.5 hp |
| DRM-036-0160 | 16,000 lb | 94 to 114 x 42 to 62 in | 36 in | 12 in | 48 in | 1.5 hp |
| DRM-036-0240 | 24,000 lb | 94 to 114 x 42 to 62 in | 36 in | 12 in | 48 in | 1.5 hp |
| DRM-042-0080 | 8,000 lb | 102.5 to 122 x 42 to 62 in | 42 in | 10 in | 52 in | 1.5 hp |
| DRM-042-0120 | 12,000 lb | 102.5 to 122 x 42 to 62 in | 42 in | 10 in | 52 in | 1.5 hp |
| DRM-042-0200 | 20,000 lb | Ask us | 42 in | 12 in | 54 in | 1.5 hp |
| DRM-048-0080 | 8,000 lb | 112.5 to 132 x 42 to 62 in | 48 in | 10 in | 58 in | 1.5 hp |
| DRM-048-0120 | 12,000 lb | 112.5 to 132 x 42 to 62 in | 48 in | 10 in | 58 in | 1.5 hp |
| DRM-048-0160 | 16,000 lb | 119 to 132 x 42 to 62 in | 48 in | 12 in | 60 in | 1.5 hp |
| DRM-060-0060 | 6,000 lb | 130.5 to 150 x 42 to 62 in | 60 in | 10 in | 70 in | 1.5 hp |
| DRM-060-0090 | 9,000 lb | 130.5 to 150 x 42 to 62 in | 60 in | 10 in | 70 in | 1.5 hp |
| DRM-060-0120 | 12,000 lb | 130.5 to 150 x 42 to 62 in | 60 in | 10 in | 70 in | 1.5 hp |
| DRM-066-0054 | 5,400 lb | 130.5 to 150 x 42 to 62 in | 66 in | 10 in | 76 in | 1.5 hp |
| DRM-066-0100 | 10,000 lb | 130.5 to 150 x 42 to 62 in | 66 in | 10 in | 76 in | 1.5 hp |
| DRM-072-0100 | 10,000 lb | 140 to 144 x 42 to 60 in | 72 in | 12 in | 84 in | 1.5 hp |
Reviews
Reviews of our parent store Heavy Duty Mobility
-
Extremely fast and responsive. Cares deeply about their customers.
Cameron Tinker Google -
He even called me right after I placed the order online to review everything…
Veronica Trustpilot -
He really knows his products, was really quick looking up the answers…
Michele Stern Google
How we work
-
You call or send the form
Tell us what you move and where. Add drawings if you have them.
-
We check your route
Every door, ramp, turn and elevator, before we quote.
-
We call the factory
We call the maker ourselves for build dates and answers.
-
You get a written quote
It lists the machine, options, freight and build time.
-
Approve and we order
We order from the factory and tell you the ship date.
Overview
The double arm scissor lift is replaced by the Super Titan scissor lift tables. This page keeps the double arm model numbers so you can match an installed lift for parts and service.
The double arm design spread the load across two scissor arms for larger platforms and higher capacity. For a new lift, see the Super Titan line.
There are 16 standard models that handle 5,400 to 24,000 lb. Vertical travel is 36 to 72 in. Lowered height is 10 to 12 in. Platform widths are 42 to 62 in and lengths are 94 to 150 in. Each model has its own row and model number in the table on this page.
Questions
Can we still buy a double arm scissor lift?
The double arm lift has been replaced by the Super Titan line. Send us the load, travel and platform size and we quote the matching Super Titan model. For parts on an installed lift, send the model and serial number from its data plate.
How do I get a price?
Call us or send the form. Tell us what you move, the route and your ZIP. We send a written quote with the machine, freight and build time.
How does it arrive?
Most machines go by freight truck from the factory. Parts and smaller items can go by FedEx or UPS. Freight to your ZIP is on your quote before you order. Rush and overnight shipping cost extra. We sell and ship to US addresses only.
-
