Air Force Pneumatic Tilter
- Availability
- Made to order
- Brand
- Autoquip
- Rated capacity
- 3,000 lb
- Platform
- 40 to 54 x 42 to 54 in
- Lowered height
- 7.25 in
Price by written quote
- Freight to your ZIP on the quote
Ask for Raphael Perlmann.
Reviews of our parent store Heavy Duty Mobility
- Fast answers We call the factory for you
- The right machine We research every option
- Send your drawings We check that it all fits
- Expedited freight Quoted when you need it sooner
Highlights
- Tilts containers on shop air with no oil
- Air damper cuts bounce as it lowers
- Fork pockets to share it between stations
- Rated 3,000 lb
Where it works
-
Assembly cells
Bins of parts tilted so workers reach without bending.
-
Coils and dies
Coils, dies and engine blocks upended at a controlled speed.
-
Bulk handling
Parts and ingredients dumped into a raised hopper.
-
Pallets
Pallets and containers tilted for loading and unloading.
Specifications
Performance
| Rated capacity | 3,000 lb |
|---|---|
| Vertical travel | Ask us |
Battery and charging
| Power unit | Internal |
|---|
Size and weight
| Platform length | 40 to 54 in |
|---|---|
| Platform width | 42 to 54 in |
| Lowered height | 7.25 in |
| Raised height | Ask us |
More details
| Standard models | 1 |
|---|---|
| Tilt angle | 30° |
Models
1 models
| Model | Rated capacity | Platform | Lowered height | Raised height | Tilt or turn | Power unit | Quote this model |
|---|---|---|---|---|---|---|---|
| STA- 42040-0030-30 | 3,000 lb | 40 to 54 x 42 to 54 in | 7.25 in | 7.25 in | 30° | Internal | Quote this model, STA- 42040-0030-30 |
Reviews
Reviews of our parent store Heavy Duty Mobility
-
Extremely fast and responsive. Cares deeply about their customers.
Cameron Tinker Google -
He even called me right after I placed the order online to review everything…
Veronica Trustpilot -
He really knows his products, was really quick looking up the answers…
Michele Stern Google
How we work
-
You call or send the form
Tell us what you move and where. Add drawings if you have them.
-
We check your route
Every door, ramp, turn and elevator, before we quote.
-
We call the factory
We call the maker ourselves for build dates and answers.
-
You get a written quote
It lists the machine, options, freight and build time.
-
Approve and we order
We order from the factory and tell you the ship date.
Delivery
- Freight to your ZIP On your quote before you order
- US addresses only We sell and ship within the US
Overview

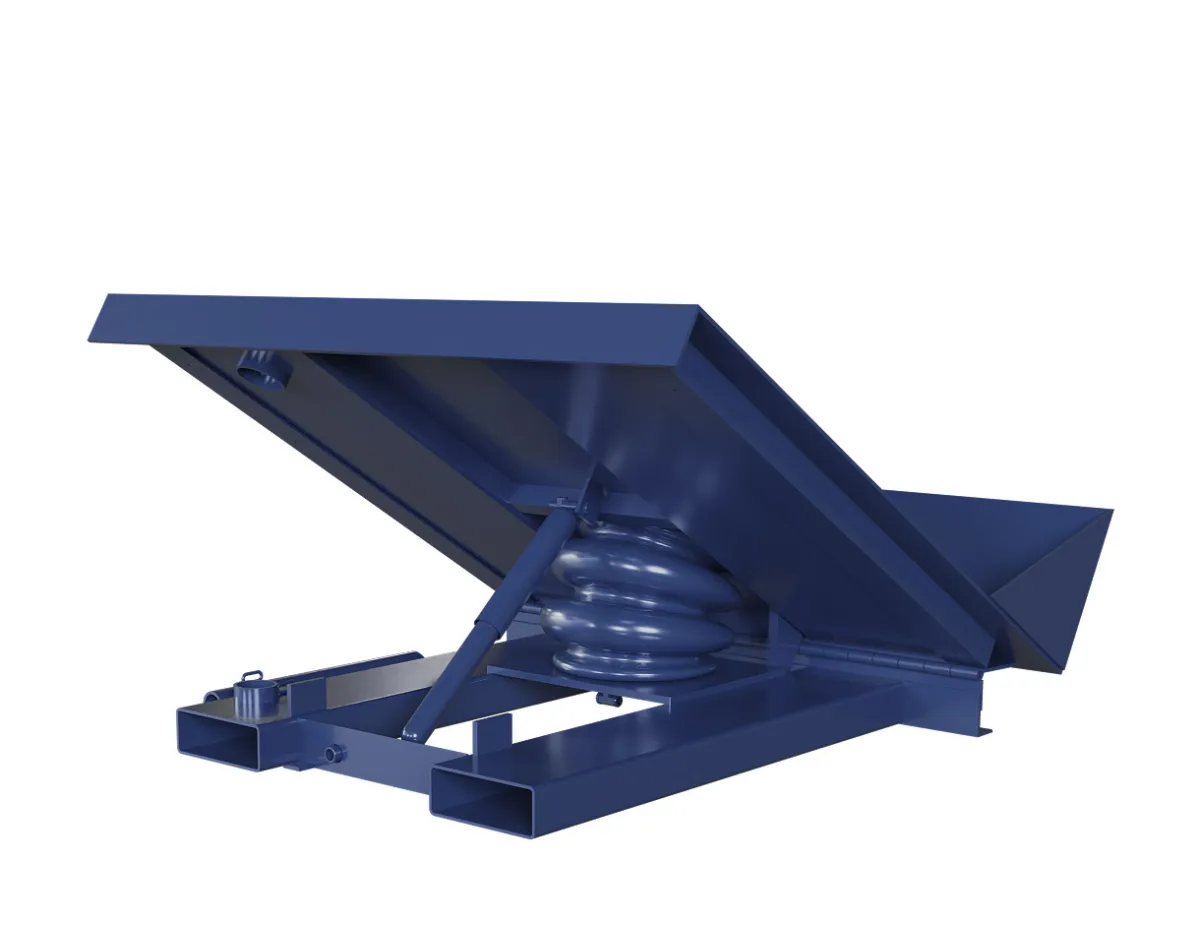

The Air Force pneumatic tilter tilts a container or pallet on industrial air bag actuators, so the worker can reach parts without leaning in. It is fully air powered with no hydraulic oil, which rules out oil leaks and spills.
A built-in air damper cuts the bounce as the platform lowers under load. Fork truck pockets make it easy to move or share between work stations.
There is one standard model rated 3,000 lb. The platform tilts 30 degrees. Lowered height is 7.25 in. Platform widths are 42 to 54 in and lengths are 40 to 54 in. Each model has its own row and model number in the table on this page.
What comes standard
- Air bag actuators that run on shop air through a quick-disconnect fitting
- Built-in air damper that reduces bounce as the platform lowers
- Fork truck pockets for moving it between stations
- Flow control on the actuator that slows the descent if a hose or air bag fails
- Low lowered height for easier loading
Questions
How do we pick the right model?
Start with the heaviest load and its footprint. Pick a model whose capacity covers the load and whose platform fits it, then the tilt angle that brings the far side of the container within reach. Each model has its own row and model number on this page.
What do we send for a quote?
The model number from the table, or the load weight and size and the heights you need. Add the air supply at the site and your delivery ZIP code. We confirm the model and send a written quote.
How fast does it tilt?
The speed depends on the model, the load and the power unit. The maker does not list it for the standard models, so ask us for the time on the model you need.
How do I get a price?
Call us or send the form. Tell us what you move, the route and your ZIP. We send a written quote with the machine, freight and build time.
How does it arrive?
Most machines go by freight truck from the factory. Parts and smaller items can go by FedEx or UPS. Freight to your ZIP is on your quote before you order. Rush and overnight shipping cost extra. We sell and ship to US addresses only.
-
